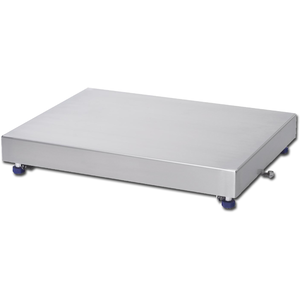

Bench Scale PBA430-BC60 - Overview - METTLER TOLEDO

Bench Scale PBA430-BC60 - Discontinued Product

The Bench Scale for Harsh Environments.Bench scale

When Cleanliness Counts

The PBA430 is designed according to the latest hygienic design guide lines. This outstanding product line is EHEDG, GMP and NSF certified. In addition, the platforms are suitable for Ex-zone 2/22.

The Surface Shows the Quality

The platform surface is electro-polished (except 600x800mm) providing more thorough cleaning and reduced risk of contamination or cross-contamination. The load plate is dishwasher safe.

Hermetically Sealed

The load cell is hermetically sealed. The IP69k protection indicates that it is suitable for high pressure cleaning. Even the harshest environments cannot damage this stainless steel load cell.

Material No.: 22010264

Discontinued since: Jun, 2022

Call for Quote

Replaced with: Weighing Platform PBA639-BC60

Cleaning and Compliance Made Easy.The PBA639 stainless-steel weighing platform strictly adheres to hygienic design guidelines, facilitates quick and easy cleaning and meets higher accuracy standards to optimize processes and reduce costs in regulated hygienic environments.

No Cavities or Crevices

The elimination of open threads, cavities and dead spots helps to prevent contamination by giving bacteria nowhere to hide.

Hazardous Area Approved

The PBA639 platform series is also available with global Ex approvals for use in Zone 1/21, Div. 1 and Zone 2/22, Div. 2 hazardous environments.

Fully Protected Load Cell

This stainless-steel, hermetically sealed load cell withstands harsh and wet environments with IP68 and IP69k protection.

Documentation - Bench Scale PBA430-BC60

Product Brochures

Extended Product Information

Food Safety with Hygienic Design
Avoid contamination - hygienically designed equipmentMETTLER TOLEDO heeft de juiste oplossingen om u te helpen de voedselveiligheid te verbeteren en t...

Accessories - Bench Scale PBA430-BC60

Consumables - Bench Scale PBA430-BC60

Specifications- Bench Scale PBA430-BC60

Specifications - Bench Scale PBA430-BC60
Maximum Capacity
100 lb (30 kg/60 kg)
Readability
0.005 lb (2 g)
Repeatability(sd)
0.0014 lb (0.6 g)
Platform Size (LxHxW)
19.7 in x 4.3 in x 25.6 in (500 mm x 108 mm x 650 mm)
Material
Stainless Steel V2A (AISI 304)
Protection Rating
IP69k; IP68
Scale Interface
Analog
Hazardous Approval
ATEX Cat. 3GD (analog); Safe area only! (SICSpro)
Resolution
0.02 lb
Readability (Certified)
0.02 lb (10 g; 20 g)
Repeatability
2 g
Repeatability, typical
0.6 g
Repeatability (typical)
0.0014 lb
Cable
8.2 ft (2.5 m)
Environment
Wet & Harsh Wet (>/=IP66)
Dimensions/Platform Size
from 19.8" to 31.5"; from 501 to 800 mm
Legal for Trade
NTEP; OIML
Hazardous Area
Non-hazardous area; Zone 2/22
Hygienic Design
Yes
Platform Type
Bench Platforms
Material Number(s)
22010264
