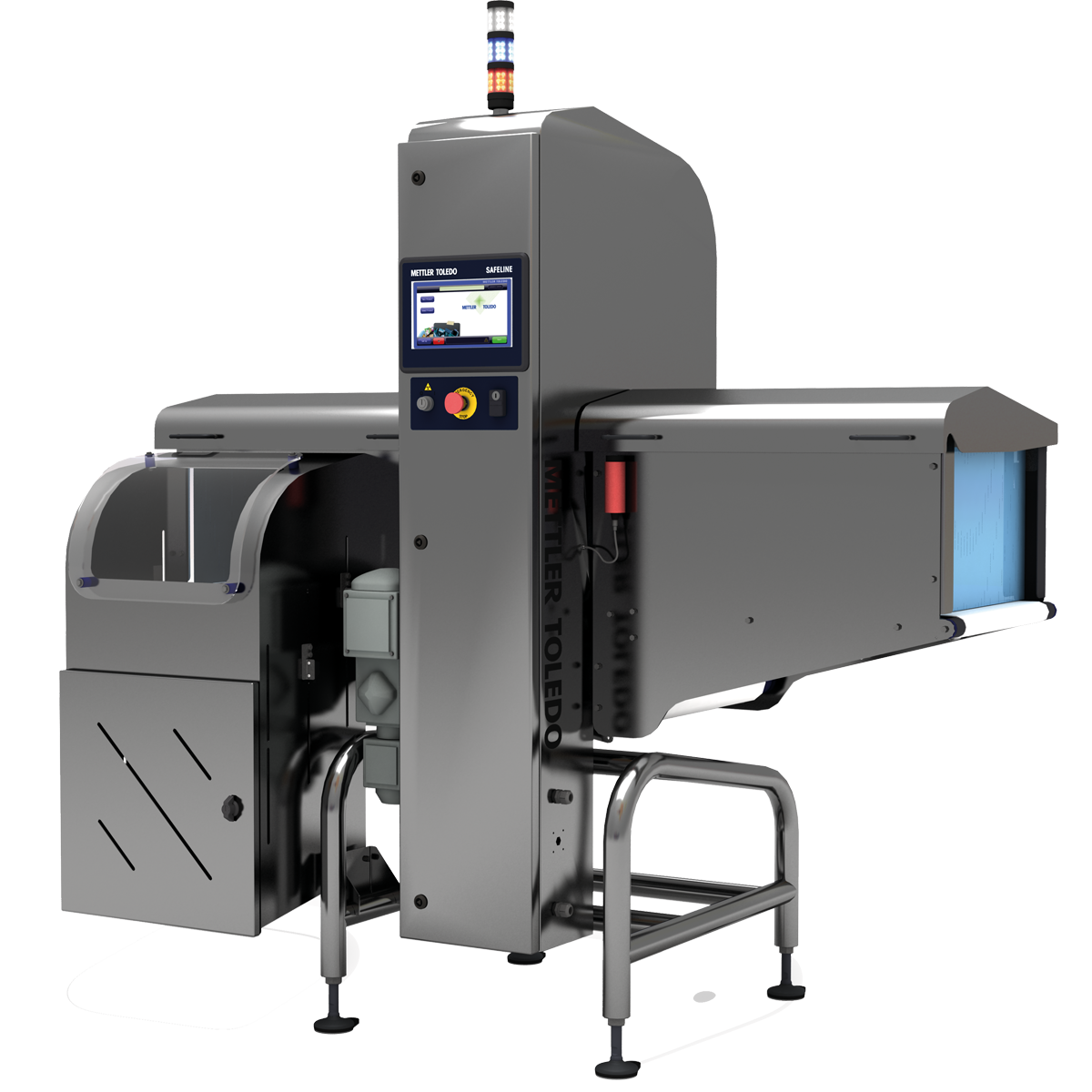

X33 Series

Simply Safeguarding Businesses.Designed for ease-of-use, the X33 offers high detection capabilities, safeguarding brands and consumers, while its low energy consumption reduces the Total Cost of Ownership.

Software Facilitates Operator Control

Proprietary software enables operators to effortlessly program semi-automated product set-ups with minimal training required, ensuring uptime.

Maximizes Production Space Efficiency

Available at 800 or 1800mm system lengths, the X33 requires less line space to accommodate production planning constraints wherein space is a premium.

Sustainable Low Energy Solution

Powered by a 20W generator, the X33 is a low energy inspection solution delivering reduced Total Cost of Ownership.

X33 Series
Gọi để được báo giá
Các thông số - X33 Series
Brand Protection
Outstanding sensitivity of metal, glass, mineral stone, calcified bone and high density rubbers
Compliance
Support FSMA and all GFSI codes including BRC & IFS
Ease of Use
High performance x-ray software can reduce the need for manual adjustments and the potential for human programming errors
Increased Productivity
World class reliability and OEE reporting
Conveyor Speed (dependent on product dimensions)
10 - 60 m/min
X-ray Detector Width and Diode Size
300mm or 400mm - 0.8mm diode size
Industry
Pharma
Number of Lanes
Single lane
X-ray Generator
20W (84kV, 0.25mA Glass Tube)
X-ray Beams
Single vertical beam
X-ray Emissions
< 1uSv/hr
Reject Type
Pusher or airblast, lift flap or retracting belt options
Cooling Method
Passive fan assisted internal cooling
Operating Temperature
5 °C - 40 °C
Power Supply
100 - 120 Vac, 1 phase, 50-60 Hz, 10 A max
HMI
10.1” LED Touchscreen display (16:9 aspect ratio)
IP rating
IP65 as Standard; IP69 available
Product Type(s)
Packaged
Packaging Material
Plastic
Conveyor Speed
10 - 60 m/min (dependent on product dimensions)
Lane Configurations
Single lane
Pneumatic Supply
6 Bar(g) air supply required for reject system
Screen Display
10.1” Capacitive Touchscreen display (16:9 aspect ratio)
Throughput Rate
Up to 300 ppm
Throughput Rate (dependent on product dimensions)
Up to 300 ppm
X-ray Detector
300mm or 400mm - 0.8mm diode size
Mã đặt hàng
30468718

Cooling Solution Saves Operational Costs

An internal fan instead of an external air conditioning unit cools the X33, reducing maintenance time and Total Cost of Ownership.

Proves Due Diligence

All inspection activities are monitored and recorded in real-time to avoid product recalls and, if needed, demonstrate due diligence.

Optimum Detection at Reduced Power

The X33 uses only 1/5th of the power needed by traditional x-ray systems to achieve high levels of detection sensitivity.

5 Year Generator Warranty

All x-ray generators have a 5-year warranty, when a standard or comprehensive service contract is purchased.

Global Presence, Local Support

A global network of service experts provide fast remote and on-site support. Our comprehensive service offering allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.

Enhancing Production Data Visibility

Ensure the highest levels of regulatory compliance through real-time data collection. ProdX, our PC-based software, constantly monitors and fully documents all production parameters, quality incidents, user interactions and performance verification routines.
