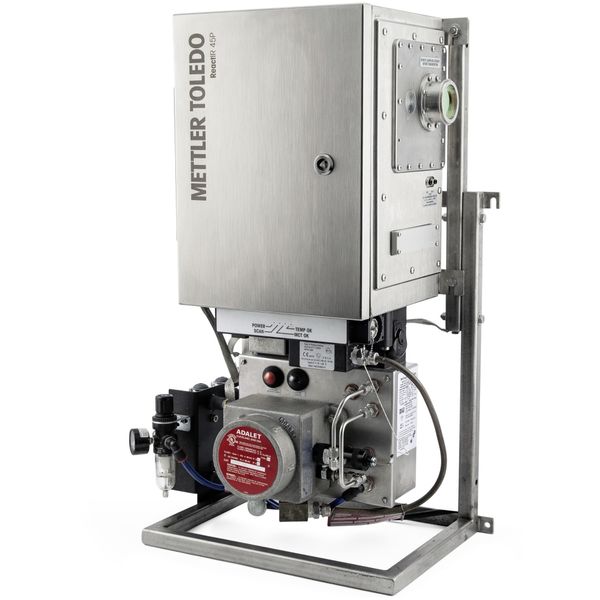

Transferring a chemical process from the lab to manufacturing can be difficult. In situ process FTIR (Fourier Transform Infrared Spectroscopy) with ReactIR 45P HL provides in-depth reaction understanding, identifies process upsets and determines reaction initiation, progression and endpoint. ReactIR 45P HL enables processes to be successfully moved from the lab to the pilot plant and production while meeting the stringent safety requirements of electrical equipment used in a hazardous or classified area. By tracking critical parameters in real-time, process design and quality is improved and variation in continuous processes as well as batch failures are eliminated.
Sampling technology is available for almost all chemistries and reactions – and for under any process conditions. These probes and sensors are suitable for studying hydrogenations, Grignard reactions, halogenations and acid chloride reactions as well as many other chemistries.
*ReactIR 45P Process FTIR is also available in a General Purpose (GP) configuration for those field environments where area classified or hazardous safety compliance is not required for electrical equipment.
用於 | |
軟體 | iC IR |
偵測器 | |
光學範圍(基本單元) | 4000 – 650 cm-1 |
淨化要求 | 是 |
外形尺寸 (高x寬x深) | 774 mm x 457 mm x 310 mm |
重量 | 45 kg |
通訊 | LC 終接乙太網路 TCP/IP,雙工光纖 |
解析度 | 4 cm -1最大 |
操作範圍 (溫度) | 0 °C – 35 °C |
探針光學視窗 | 4000 – 650 cm-1(Sentinel) 2500 – 650 cm-1最大(纖維探針) |
濕式材料 | 鑽石或矽 合金 C-22 |
探針壓力(最大) | 69bar(6.3和9.5mm纖維探針) |
探針溫度(最大) | 180°C(纖維探針) |
探針酸鹼值範圍 | 1 – 9(矽) 1 – 14(鑽石) |
防護等級 | IP54 |
