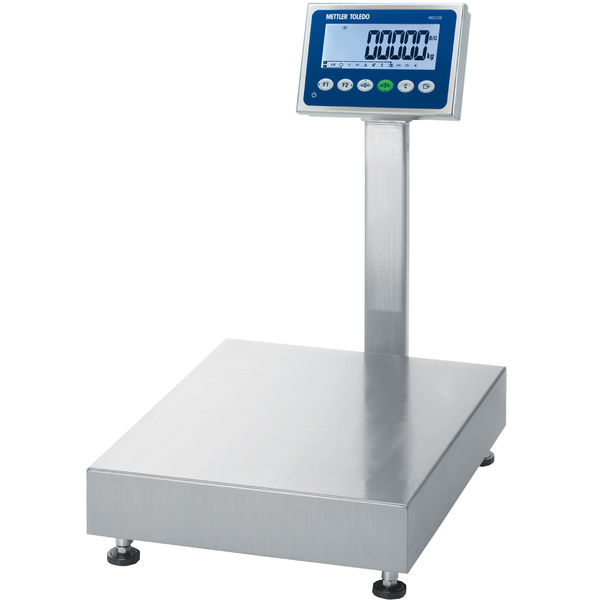

Bench Scale BBA236-4A15R
For Demanding Applications.
Simple & Intuitive
The IP65-rated scale is easy to operate. The straightforward setup of different functions requires minimal operator training.
Easy to Clean
The open and sturdy stainless-steel platform design, built according to hygienic standards, allows fast, thorough and easy cleaning.
Execution
The scale features a Nickel Metal Hydride rechargeable battery and is unapproved by delivery. The stand is not included and must be ordered separately.
Call for Quote /content/in/en/home/products/Industrial_Weighing_Solutions/bench-scales/ind-basics/BBA236-eu/BBA236-4A15R.fb.1.c.11.html?abcl=2 Specifications - Bench Scale BBA236-4A15R
| Maximum Capacity | 15 kg |
| Readability | 1 g |
| Repeatability (sd) | 0.5 g |
| Platform Size (Length) | 240 mm |
| Platform Size (Width) | 300 mm (11.8 in) |
| Platform Size (Height) | 86 mm |
| Material | Stainless Steel |
| Protection Rating | IP65 Platform; IP67 terminal |
| Display | 7 segment LCD with backlit |
| Interfaces | RS232 |
| Housing | Stainless Steel |
| Repeatability | 1 g |
| Repeatability (typical) | 0.5 g |
| Weighing Pan Dimensions (Length) | 240 mm |
| Hazardous Approval | No |
| Application Software | Dynamic Weighing; Counting; Simple weighing; Over Under Checkweighing |
| Weighing Pan Dimensions (Width) | 300 mm |
| Weighing Pan Dimensions (Height) | 56 mm |
| Power Supply | Rechargeable NiMH battery |
| Data Interface | Serial |
| Applications | Simple Weighing; Dynamic weighing; Counting; Over Under Checkweighing |
| Environment | Dusty & Light Wet (IP65) |
| Dimensions/Platform Size | </=400 mm |
| Hazardous Area | Non-hazardous area |
| Voltage | Battery Version; AC Version |
| Scale Interface | Analog |
| Hygenic Design | No |
| Performance Optimization | High Resolution: Special aluminum strain gauge load cell |
| Data Management | Printing: Application specific print templates |
| Compliance Support | Hygienic Designed Platform: Easy to Clean |
| Versatility | Good Readability: LCD-Display with backlit; Mobile Operation: Battery optional available; Bench Scale: For versatile weighing tasks in light wet environment |
| Cable (Length) | 1.8 m |
| Platform Type | Bench Scale |
| Zero Return (typical) | 0.4 g |
| Error of Indication at half load (typical) | 1.6 g |
| Hysteresis (typical) | 0.4 g |
| Eccentric Load Deviation at 1/3 of Full Load (typical) (Metric) | 1.5 g |
| Error of Indication at full load (typical) | 0.7 g |
| EasyPrint Name | BBA236-4A15R |
| Material Number(s) | 30080362 |
