Bench Scale BBA231-3BB60A - Overview - METTLER TOLEDO

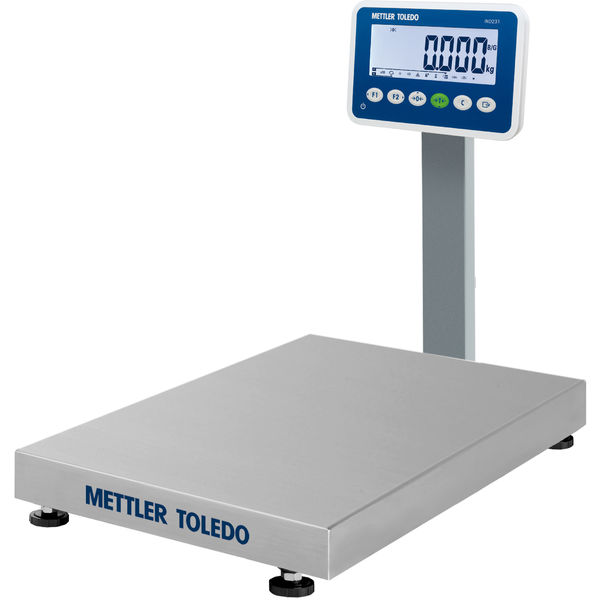

Bench Scale BBA231-3BB60A

For Routine Applications.BBA231 - Bench Scale

Multi-Functional

Fast, economical and multi-functional for any straight weighing, counting, checkweighing or classifying application in a dry environment.

Visible and Fast

The terminal, with its large LCD display, is easy to operate and features a built-in RS232 interface to communicate with a printer or PC.

Lasting Battery Power

The scale is powered by 240 VAC or 6 AA dry batteries for >80 hours of stand-alone operation.

Call for Quote
Specifications - Bench Scale BBA231-3BB60A
Maximum Capacity
60 kg
Readability
5 g
Repeatability (sd)
2.7 g
Platform Size (Length)
300 mm (11.8 in)
Platform Size (Width)
400 mm (15.7 in)
Platform Size (Height)
77.5 mm (3.05 in)
Material
Platform: Carbon Steel; Terminal: Plastic
Protection Rating
IP54 Terminal; IP65 Platform
Display
7 segment LCD with backlit
Interfaces
RS232
Housing
Platform: Carbon Steel; Terminal: Plastic
Repeatability
5 g
Repeatability (typical)
2.7 g
Repeatability (typical)
0.006 lb
Weighing Pan Dimensions (Length)
300 mm (11.8 in)
Hazardous Approval
No
Application Software
Dynamic Weighing; Counting; Simple weighing; Over Under Checkweighing
Weighing Pan Dimensions (Width)
400 mm (15.7 in)
Weighing Pan Dimensions (Height)
48 mm (1.89 in)
Data Interface
Serial
Applications
Simple Weighing; Dynamic weighing; Counting; Over Under Checkweighing
Environment
Dry (<IP65)
Dimensions/Platform Size
</=400 mm; from 6.3" to 15.7"
Hazardous Area
Non-hazardous area
Voltage
Battery Version; AC Version
Scale Interface
Analog
Hygenic Design
No
Performance Optimization
Reliable Weighing Technology: Robust aluminum strain gauge load cell
Data Management
Printing: Application specific print templates
Versatility
Good Readability: LCD-Display with backlit; Mobile Operation: Battery optional available; Bench Scale: For versatile weighing tasks in dry environment
New Attribute (2)
2 m (6.5 ft)
Platform Type
Bench Scale
Zero Return (typical)
2.3 g
Error of Indication at half load (typical)
3.6 g
Hysteresis (typical)
2.9 g
Eccentric Load Deviation at 1/3 of Full Load (typical) (Metric)
4.4 g
Error of Indication at full load (typical)
6.6 g
EasyPrint Name
BBA231-3BB60A
Material Number(s)
30080310
