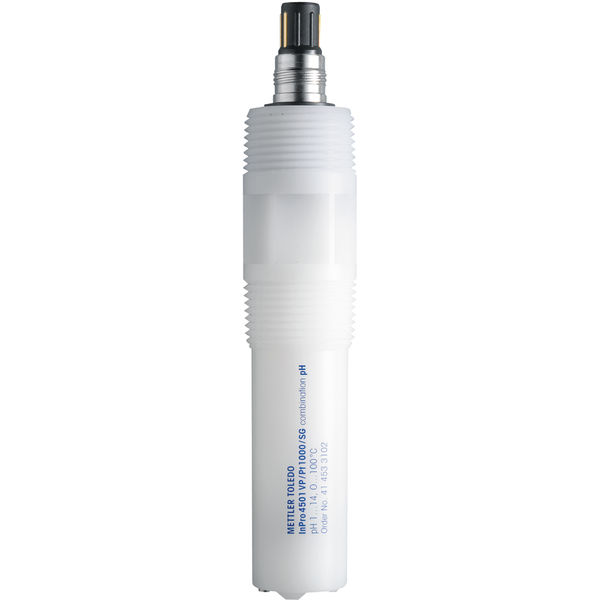

Name: pH Sensor InPro4501/VP/PT100/SG
Brand: Mettler Toledo

Protected Against Breaking

The flat glass membrane of the InPro 4501 is protected by the PVDF body against breaking and is self-cleaning in flowing applications.

Eliminates Clogging & Resists Poisons

An open junction and Xerolyt® Extra polymer reference system provides resistance to poisoning, solvents, and strong acid or alkali conditions.

Accuracy at Low Temperatures

The InPro 4501 uses a special low-temperature glass that provides reliable pH measurement at low process temperatures.

Reliability to Ensure Uptime

The InPro 4501 provides the reliability you need to prevent interruption to your measurement. Its flat membrane is self-cleaning in flowing applications, and the PVDF body protects the sensor from physical impacts.

Easy to Install & Integrate

This pH sensor features a NPT thread process connection, allowing direct mounting into the process. This simplifies set-up and eliminates the need for extra housing costs. For submersion applications, the InDip is a suitable housing.

Low-Maintenance pH Probe

A solid polymer electrolyte requires no refilling or pressurizing, and is in direct contact with the process media via an open junction. This eliminates the possibility of junction clogging in contaminated media.

Solution Ground For Precise Measurement

This pH sensor has a solution ground that improves grounding and effectively eliminates the risk of electrostatic interference.

Specifications - pH Sensor InPro4501/VP/PT100/SG

ISM (Digital) or Analog	Analog
pH Sensing Technology	Glass Membrane Suitable For Low Temperatures (LoT)
pH Range	1 – 14
Reference System	Xerolyt Extra polymer electrolyte, open double junction, Argenthal cartridge with silver-ion trap
Operating Temperature (Fahrenheit)	32 °F - 212 °F
Operating Temperature (Celsius)	0 °C - 100 °C
Cable Connector	VP
Process Connection	1 inch NPT
Sterilizable/Autoclavable	No
Sensor Length	72.5 mm
Certificates & Approvals	ATEX/IECEx: Ex ia IIC T6/T5/T4/T3 Ga/Gb CE FM: IS Cl. I, II, III, Div 1, GR ABCDEFG/T6 METTLER TOLEDO Quality Certificate PED
Operating Pressure (Bar)	0 to 6 barg @ 65 °C
Model Family	InPro4500
Temperature Sensor	Pt 100
Measurement Parameter	pH
Shaft Material	PVDF
Operating Pressure (PSI)	0 to 87 psig @ 149 °F
Solution Ground/Redox Metal	Titanium
Refillable Electrolyte	No
Hazardous Area Approvals	Yes
Primary Media/Application	Chemical Processes
Hygienic/Biocompatibility Approvals	No

Buffers for In-Line pH Sensors

Technical Buffer pH 2.00 6x250ml

Certified and traceable pH buffer solution for sensor calibration and verification in life science and industrial applications. This package contains six bottles of 250mL of pH 2.00 buffer solution.

Material No.: 51319010

Technical Buffer pH 2.00 1000ml

Certified and traceable pH buffer solution for sensor calibration and verification in life science and industrial applications. This single bottle contains 1000 mL of pH 2.00 buffer solution.

Material No.: 51319011

Technical Buffer pH 4.01 6x250ml

Certified and traceable pH buffer solution for sensor calibration and verification in life science and industrial applications. This package contains six bottles of 250mL of pH 4.01 buffer solution.

Material No.: 51340058

Technical Buffer pH 4.01 1000ml

Certified and traceable pH buffer solution for sensor calibration and verification in life science and industrial applications. This single bottle contains 1000 mL of pH 4.01 buffer solution.

Material No.: 51340228

Technical Buffer pH 7.00 6x250ml

Certified and traceable pH buffer solution for sensor calibration and verification in life science and industrial applications. This package contains six bottles of 250mL of pH 7.00 buffer solution.

Material No.: 51340060

Technical Buffer pH 7.00 1000ml

Certified and traceable pH buffer solution for sensor calibration and verification in life science and industrial applications. This single bottle contains 1000 mL of pH 7.00 buffer solution.

Material No.: 51340229

Technical Buffer pH 9.21 6x250ml

Certified and traceable pH buffer solution for sensor calibration and verification in life science and industrial applications. This package contains six bottles of 250mL of pH 9.21 buffer solution.

Material No.: 51300194

Technical Buffer pH 9.21 1000ml

Certified and traceable pH buffer solution for sensor calibration and verification in life science and industrial applications. This single bottle contains 1000 mL of pH 9.21 buffer solution.

Material No.: 51340230

Technical Buffer pH 10.00 6x250ml

Certified and traceable pH buffer solution for sensor calibration and verification in life science and industrial applications. This package contains six bottles of 250mL of pH 10.00 buffer solution.

Material No.: 51340231

Technical Buffer pH 10.00 1000ml

Certified and traceable pH buffer solution for sensor calibration and verification in life science and industrial applications. This single bottle contains 1000 mL of pH 10.00 buffer solution.

Material No.: 51340232

Buffer pH 4.01 ACS red 5000ml

Certified and traceable pH buffer solution for sensor calibration and verification in life science and industrial applications. This single container holds 5000 mL of pH 4.01 buffer solution.

Material No.: 51319012

Buffer pH 7.00 ACS green 5000ml

Certified and traceable pH buffer solution for sensor calibration and verification in life science and industrial applications. This single container holds 5000 mL of pH 7.00 buffer solution.

Material No.: 51319016

Buffer pH 9.21 ACS blue 5000ml

Certified and traceable pH buffer solution for sensor calibration and verification in life science and industrial applications. This single container holds 5000 mL of pH 9.21 buffer solution.

Material No.: 51319017

Technical Buffer pH 2.00 250ml

Certified and traceable pH buffer solution for sensor calibration and verification in life science and industrial applications. This single bottle contains 250 mL of pH 2.00 buffer solution.

Material No.: 51340055

Technical Buffer pH 4.01 250ml

Certified and traceable pH buffer solution for sensor calibration and verification in life science and industrial applications. This single bottle contains 250 mL of pH 4.01 buffer solution.

Material No.: 51340057

Technical Buffer pH 7.00 250ml

Certified and traceable pH buffer solution for sensor calibration and verification in life science and industrial applications. This single bottle contains 250 mL of pH 7.00 buffer solution.

Material No.: 51340059

Technical Buffer pH 9.21 250ml

Certified and traceable pH buffer solution for sensor calibration and verification in life science and industrial applications. This single bottle contains 250 mL of pH 9.21 buffer solution.

Material No.: 51300193

Technical Buffer pH 10.00 250ml

Certified and traceable pH buffer solution for sensor calibration and verification in life science and industrial applications. This single bottle contains 250 mL of pH 10.00 buffer solution.

Material No.: 51340056
