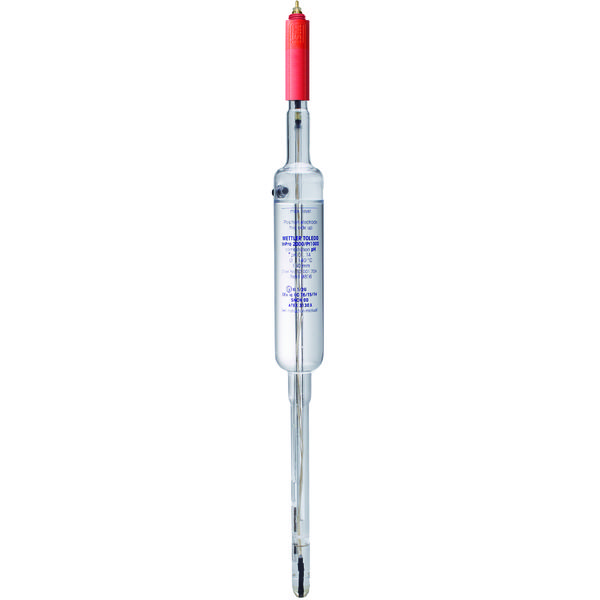

Name: pH Sensor InPro2000i/SG/120/9848
Brand: Mettler Toledo

For Use in Extreme Conditions

The InPro 2000i uses a refillable and pressurizable reference electrolyte to ensure measurement stability and low maintenance in harsh applications.

Refillable Sensor with Long Lifetime

This pH/ORP sensor uses a refillable 9848 Friscolyt electrolyte to ensure reliable results over a long lifetime in media with proteins/organic solvents.

Advanced Sensor Diagnostics with ISM

The InPro 2000i uses ISM advanced diagnostics that adapt to your processes to help plan calibration and maintenance of your pH and redox sensor.

Reliable in Demanding Applications

The InPro2000i refillable pH sensor uses a pressurizable reference electrolyte that ensures permanent self-cleaning of the diaphragm. This leads to long-term pH measurement stability and low maintenance in harsh applications.

Reliability in Challenging Media

This refillable pH/ORP sensor uses a 9848 Friscolyt electrolyte. This electrolyte is designed to provide optimal results and an extended lifetime in media with high protein or organic solvent concentrations. It's also well suited for low temperature media.

Meets Your Installation Requirements

The InPro 2000i SG/120/9848 has an integrated digital temperature signal for reliable temperature compensation. With a length of 120 mm, it's optimal when short installations are needed.

Accurate, Reliable Measurement System

The InPro 2000i is designed with long-term accuracy and reliability in mind. It is sterilizable and autoclavable, has an Argenthal silver-ion trap to prevent sulfide poisoning of the junction, and is ATEX and FM certified for installation in hazardous areas.

Specifications - pH Sensor InPro2000i/SG/120/9848

ISM (Digital) or Analog	ISM (Digital)
pH Sensing Technology	Highly Alkali Resistant Glass Membrane for Tough Conditions (HA)
pH Range	0 – 14
Reference System	Selectable and pressurizable electrolyte, ceramic diaphragm, Argenthal cartridge with silver-ion trap
Operating Temperature (Fahrenheit)	32 °F - 284 °F
Operating Temperature (Celsius)	0 °C - 140 °C
Cable Connector	K8S
Sterilizable/Autoclavable	Yes
Sensor Length	120 mm
Certificates & Approvals	ATEX/IECEx: Ex ia IIC T6/T5/T4/T3 Ga/Gb CE FM: IS Cl. I, II, III, Div 1, GR ABCDEFG/T6 METTLER TOLEDO Quality Certificate PED
Operating Pressure (Bar)	0 to 6 barg
Model Family	InPro2000(i)
Temperature Sensor	Digital
Measurement Parameter	ORP/Redox pH
Shaft Material	Glass
Operating Pressure (PSI)	0 to 87 psig
Solution Ground/Redox Metal	Platinum
Refillable Electrolyte	9848 Friscolyt
Hazardous Area Approvals	Yes
Primary Media/Application	Chemical Processes
Hygienic/Biocompatibility Approvals	No
