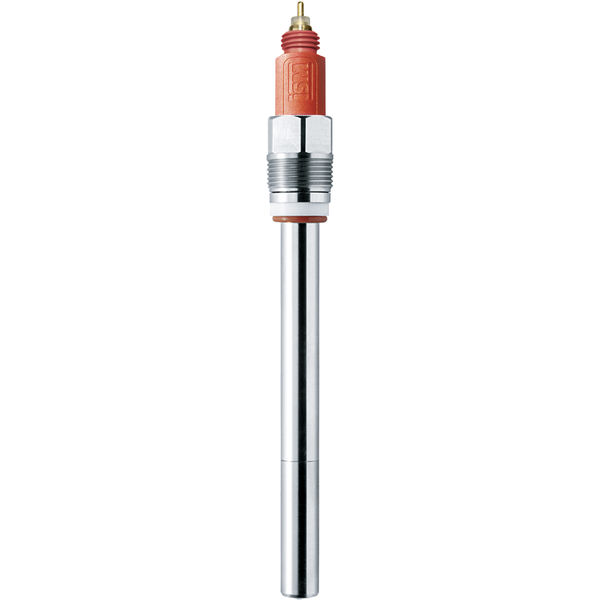

O2 Sen InPro6850iG/12/220/1611111

Name: O2 Sen InPro6850iG/12/220/1611111
Brand: Mettler Toledo

The InPro 6850iG/12/220 is an amperometric gas-phase oxygen sensor that is suited to a wide measurement range in a broad choice of applications. This sensor uses Intelligent Sensor Management (ISM) diagnostics to reduce maintenance and downtime.

Material No.: 52206432

In-Line Gas Phase O₂ Measurement

The InPro 6850iG/12/220 is designed to measure gas-phase oxygen in-line, in harsh environments and hazardous area applications.

Signal Stability & Reduced Maintenance

The 3-electrode system of the InPro 6850iG/12/220 includes a platinum anode that increases signal stability and extends maintenance intervals.

Real-Time Sensor Performance Monitoring

The InPro 6850iG/12/220 uses ISM technology to provide advanced diagnostics, including days until the membrane kit should be replaced.

Reliable in Harsh Processes

The InPro 6850iG/12/220 offers accurate measurement between 0.1% and 100% oxygen, making it suitable for challenging applications such as off-gas monitoring or inertization in aggressive processes.

Suited to Your Process Needs

To meet the requirements of your specific application, the InPro 6850iG/12/220 is 220 mm long for medium to long length installations. It uses a standard silicone O-ring with 316L stainless steel wetted parts.

Fast Sensor Replacement for More Uptime

The InPro 6850iG/12/220 offers an easy-to-change membrane body and ISM Plug and Measure technology. Plug and Measure allows a sensor to be polarized and calibrated away from the process under lab conditions, and then inserted directly into the process.

Accurate, Quick Measurement

The InPro 6850iG/12/220 responds very quickly to changes in oxygen levels (90% in under 20 seconds), and the membrane is insensitive to dust and moisture. This provides fast, accurate readings in the process stream.

Specifications - O2 Sen InPro6850iG/12/220/1611111

Measurement Parameter	Gas-Phase Oxygen
Measurement Technology	Amperometric Clark Electrode
Measurement Range	301 ppm - 100% O2
Accuracy	≤ ±[1% +0.1 Vol-%]
Response Time	T90 ≤ 20s (nitrogen to 15 Vol-% O2 at 25 °C / 77 °F)
Primary Media/Application	Chemical Processes Pharmaceutical/Life Science Production
ISM (Digital) or Analog	ISM (Digital)
Cable Connector	K8S
Sensor Length	220 mm
Process Connection	Pg 13.5
Connector Design	Straight
O-Ring Material	Silicone
Sensor Diameter	12 mm
Surface Roughness of Wetted Parts	N5/Ra 16 (Ra=0.4mm/16min)
Wetted Materials	316L Stainless Steel
Wetted membrane material	PTFE
Model Family	InPro6850iG
Detection limit	300 ppm
Detection limit	300 ppm
Sensor signal in air at 25 °C (77 °F)	50...110 nA
Residual signal in oxygen free media	<0.1 % of signal in ambient air
Temperature compensation	Automatic
Measuring Temp. Range	32 °F – 158 °F (0 °C – 70 °C)
Operating Pressure (Bar)	0.200 bar–9.000 bar
Operating Pressure (PSI)	2.9 to 130 psi absolute
Mechanical Temp. Range	23 °F – 250 °F (-5 °C – 121 °C)
Design pressure (bar)	maximum 12 bar
Design Pressure (PSI)	maximum 174 psi absolute
Hazardous Area Approvals	ATEX: Ex ia IIC T6 / T5 / T4 / T3 Ga / Gb, Ex ia IIIC T69 °C / T81 °C / T109 °C / T161 °C Da / Db. FM: IS Cl. I, II, III, Div 1, GR ABCDEFG / T6 *
Hygienic/Biocompatibility Approvals	EHEDG, FDA/USP Class VI
Other certificates	METTLER TOLEDO Quality Certificate, Material certificate 3.1, N5/Ra 17
Mechanical Temperature Resistance (Celsius)	-5 °C – 121 °C
Operating Range	301 ppm - 100% O2
Intelligent Sensor Management (ISM®)	Yes
Measured Pressure Resistance	0.2 bar – 9 bar
Mechanical Temperature Resistance (Fahrenheit)	23 °F – 250 °F
