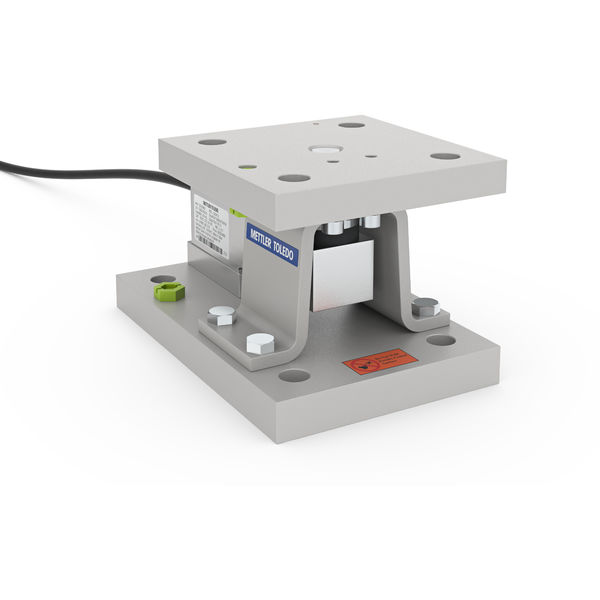

Weigh Module SWB405 110kg 5m CS

Name: Weigh Module SWB405 110kg 5m CS
Brand: Mettler Toledo

Weigh Module SWB405 MultiMount Carbon Steel 110kg/250lb

Material No.: 30801027

All Safety on Board

Offers all safety features, including anti-uplift protection, 360° checking and down-stop protection to ensure the safety of tank weighing.

Easy Integration

SafeLockTM feature is built into SWB405 MultiMountTM weigh modules to make installation easier with all components locked in ideal initial positions.

Reliable Weighing

The hermetically sealed SLB415 load cell with IP68 rating can meet most industrial requirements.

Low Contamination Risk

The powder-coated SWB405 MultiMountTM ensures zinc and copper material content is below 1% to significantly reduce the risk of cross-contamination in Li-ion battery production.

Specifications - Weigh Module SWB405 110kg 5m CS

Maximum Capacity	250 lb (110 kg)
Material	Powder Coated Carbon Steel
Metrology	OIML C3, NTEP III 5M
Load Cell	SLB415
Accuracy	Standard
Environment / Material	Normal / Carbon Steel
Protection Rating	IP68 NEMA 6
Hazardous Approval	ATEX, FM
Criticality	Standard
Cable	5 m
