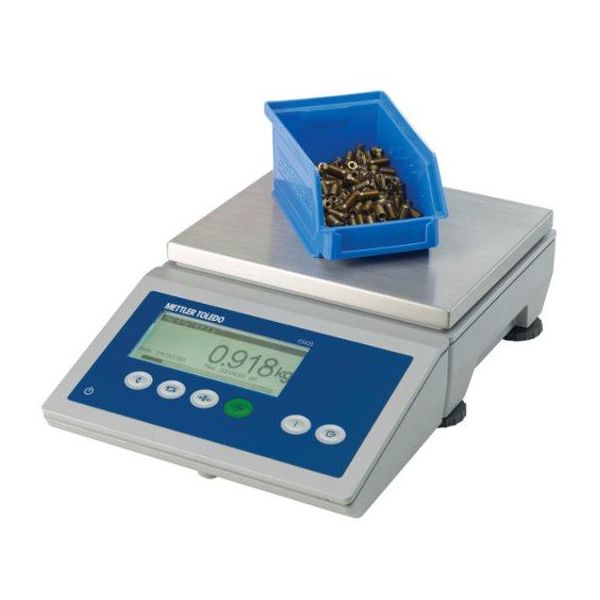

Compact Scale ICS425s-6SM/f
Reliable Performance.
Strain Gauge Technology
ICS425, the basic weighing level solution, is optimized for quick and easy weighing applications.
Durable and Rugged
Tough enough for use in industrial environments with aluminum die cast housing, overload protection and robust foil keypad.
Material No.: 22023033
Specifications
Specifications - Compact Scale ICS425s-6SM/f
| Maximum Capacity | 12 lb (6 kg) |
| Readability | 0.001 lb (0.1 g) |
| Readability (Certified) | 0.002 lb |
| Repeatability (sd) | 0.00009 lb (0.04 g) |
| Platform Size (LxHxW) | 7.9 in x 3.7 in x 9.5 in (200 mm x 95 mm x 240 mm) |
| Material | Aluminum die casting |
| Protection Rating | IP54 |
| Repeatability | 0.0002 lb |
| Hazardous Approval | No |
| Housing | Aluminum Die Casting |
| Interfaces | RS232 |
| Display | Graphic LCD with backlight |
| Repeatability, typical | 0.04 g |
| Repeatability, (typical) | 0.00009 lb |
| Application Software | Dynamic weighing Simple weighing |
| Data Interface | Ethernet Serial USB |
| Hazardous Area | Non-hazardous area |
| Legal for Trade | NTEP |
| Applications | Dynamic weighing Simple Weighing |
| Environment | Dry (<IP65) |
| Voltage | AC Version Battery Version |
| Scale Interface | SICSpro |
| Interfaces (Optional) | Discrete I/O Ethernet RS422 RS485 USB |
| Hygienic Design | No |
| Data Management | Convenient Printing: Easy creation of print & label templates Custom Print Formats: Odette, AIAG, Galia etc. |
| Platform Type | Compact Scale |
