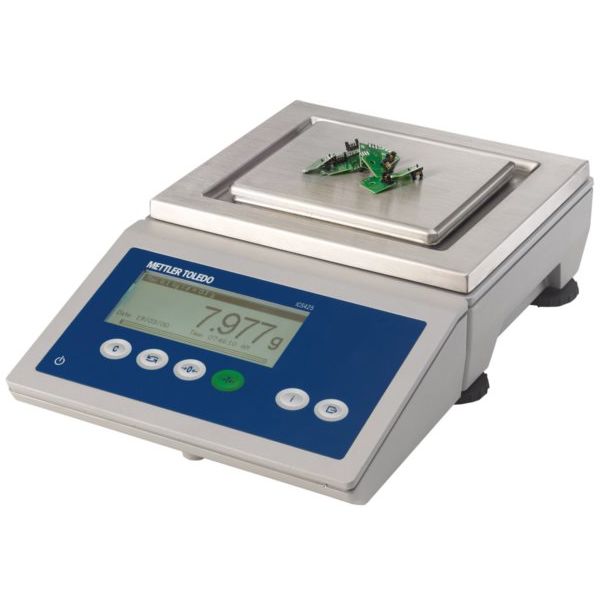

Compact Scale ICS425k-6XS/f
Highly Precise.
Greater Manufacturing Accuracy and Quality
The ICS425, made with MonoBloc® Technology, is the basic weighing level solution optimized for quick and easy weighing applications.
Durable and Rugged
Tough enough for use in industrial environments with aluminum die cast housing, overload protection and robust foil keypad.
Material No.: 22023126
Specifications
Specifications - Compact Scale ICS425k-6XS/f
| Maximum Capacity | 12 lb (6 kg) |
| Readability | 0.00002 lb (0.01 g) |
| Readability (Certified) | 0.0002 lb (0.1 g) |
| Repeatability (sd) | 0.00001 lb (0.005 g) |
| Platform Size (LxHxW) | 5.1 in x 3.7 in x 6.3 in (130 mm x 95 mm x 160 mm) |
| Material | Aluminum die casting |
| Protection Rating | IP54 |
| Repeatability | 0.00002 lb |
| Hazardous Approval | No |
| Housing | Aluminum Die Casting |
| Interfaces | RS232 |
| Display | Graphic LCD with backlight |
| Repeatability, typical | 0.005 g |
| Repeatability, (typical) | 0.00001 lb |
| Weighing Pan Dimensions (LxW) | 228 mm x 228 mm |
| Application Software | Dynamic weighing Simple weighing |
| Data Interface | Ethernet Serial USB |
| Hazardous Area | Non-hazardous area |
| Legal for Trade | NTEP OIML |
| Applications | Dynamic weighing Simple Weighing |
| Environment | Dry (<IP65) |
| Voltage | AC Version Battery Version |
| Scale Interface | SICSpro |
| Interfaces (Optional) | Discrete I/O Ethernet RS422 RS485 USB |
| Hygienic Design | No |
| Data Management | Convenient Printing: Easy creation of print & label templates Custom Print Formats: Odette, AIAG, Galia etc. |
| Platform Type | Compact Scale |
