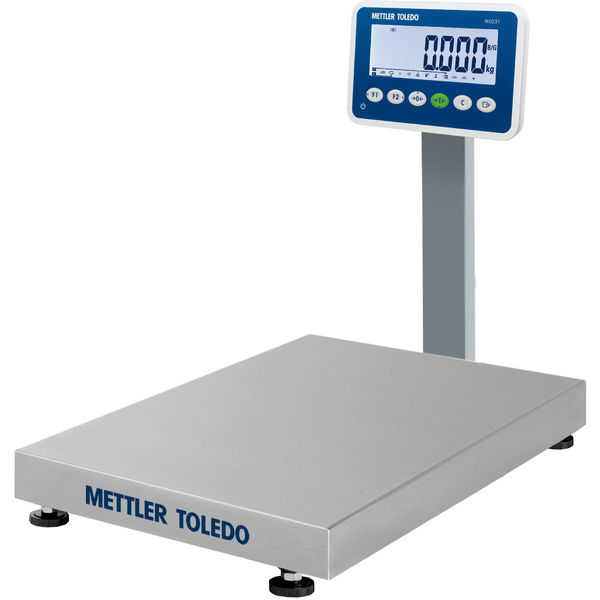

Bench Scale BBA231-3A6A/S
BBA231 - Bench Scale
Material No.: 30079972
Highlights
Multi-Functional
Fast, economical and multi-functional for any straight weighing, simple counting, or simple checkweighing application in a dry environment.
Visible and Fast
The terminal, with its large LCD display, is easy to operate and features a built-in RS232 interface to communicate with a printer or PC.
Lasting Battery Power
The scale is powered by 100-240 VAC or 6 AA dry batteries for >80 hours of stand-alone operation.
Specifications
Specifications - Bench Scale BBA231-3A6A/S
| Maximum Capacity | 10 lb (6 kg) |
| Readability | 0.001 lb (0.5 g) |
| Readability (Certified) | 0.002 lb (2 g) |
| Material | Platform: Carbon Steel Terminal: Plastic |
| Protection Rating | IP54 Terminal IP65 Platform |
| Repeatability (sd) | 0.00044 lb (0.2 g) |
| Scale Interface | Analog |
| Platform Size (LxHxW) | 9.5 in x 2.7 in x 11.8 in (240 mm x 68.5 mm x 300 mm) |
| Display | 7 segment LCD with backlight |
| Interfaces | RS232 |
| Housing | Platform: Carbon Steel Terminal: Plastic |
| Repeatability | 0.001 lb |
| Repeatability, typical | 0.2 g |
| Repeatability, (typical) | 0.01 lb |
| Weighing Pan Dimensions (LxHxW) | 9.5 in x 1.5 in x 11.8 in (240 mm x 38 mm x 300 mm) |
| Hazardous Approval | No |
| Data Interface | Discrete I/O Serial USB |
| Hazardous Area | Non-hazardous area |
| Legal for Trade | NTEP OIML |
| Applications | Animal Weighing Counting Over Under Checkweighing Simple Weighing Totalizing |
| Environment | Dry (<IP65) |
| Voltage | AC Version Battery Version |
| Interfaces (Optional) | Discrete I/O RS422 RS485 USB |
| Hygienic Design | No |
| Data Management | Printing: Application specific print templates |
| Cable | 3.3 ft (1 m) |
| Platform Type | Bench Scale |
