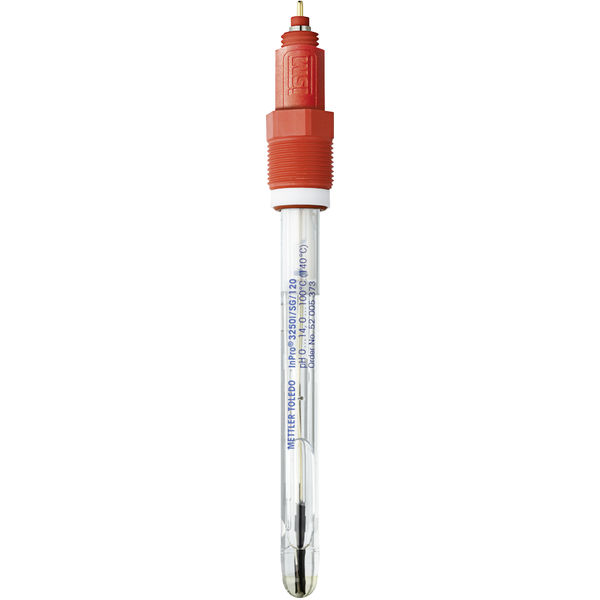

Name: pH 值感測器 InPro3253i/SG/425
Brand: Mettler Toledo

可靠、準確、堅固

InPro 3253i SG/425能承受您生產作業的嚴格條件。預先加壓的零維護參比系統，能保證在多種不同的作業環境下，展現高重現性與可靠的測量效能。

ISM帶來先進的電極診斷

此酸鹼值電極具備數位訊號與智慧型診斷功能，協助管理您的維護事宜。此電極能清楚顯示電極剩餘的使用壽命、還有多久才需要校準，以及已經歷過的SIP和CIP循環次數。

輕鬆驗證

InPro 3253i SG/425適用於化學與藥品生產。其認證涵蓋了危險區域的使用、電解液的生物相容性，及所有相關的衛生及安全規範。

多種用途，能符合您的應用需求

此電極能測量酸鹼值與ORP（氧化還原），並內建數位溫度電極。耐壓性高達4 barg（58 psig）、具有防水連接器，並能承受重複的滅菌與高壓滅菌循環。

詳細說明 - pH 值感測器 InPro3253i/SG/425

ISM（數位）或類比	ISM（數位）
pH感測技術	可蒸汽滅菌的玻璃薄膜（A41）
酸鹼值範圍	0 – 12
參比系統	預先加壓式液體電解質、陶瓷隔膜、Argenthal匣盒（搭配銀離子捕捉裝置）
操作溫度(℃)	0 °C - 100 °C
纜線連接器	K8S
製程連接	Pg 13.5螺紋
可滅菌/可高壓滅菌處	是
電極長度	425 mm
認證與核准	CE METTLER TOLEDO品質證書 FM： IS Cl. I, II, III, Div 1, GR ABCDEFG/T6 EHEDG ATEX/IECEx： Ex ia IIC T6/T5/T4/T3 Ga/Gb PED
操作壓力（Bar）	0至4 barg
型號系列	InPro3250（i）
溫度感測器	數位
測量參數	pH ORP/氧化還原
電極管柱材質	玻璃
溶液接地/氧化還原金屬	白金
可添加電解質	否
危險區域核准	是
主要介質/應用	製藥/生命科學生產
衛生/生物相容性核准	是

Features and Benefits

Reliable, Accurate and Robust
The InPro 3253i SG/425 is designed to withstand the rigors of your production. Its pre-pressurized, maintenance-free reference system ensures high reproducibility and reliable measurement performance under diverse operating conditions.

Advanced Sensor Diagnostics with ISM
This pH sensor features intelligent diagnostics to help manage your maintenance. The sensor provides a clear display of its remaining lifetime, time remaining until calibration is needed, and counts of the SIP and CIP cycles it has undergone.

Easy Validation
The InPro 3253i SG/425 is suited for chemical and pharmaceutical production. Its certification covers hazardous zone use, biocompatibility of the electrolyte, and all relevant hygiene and safety regulations.

Versatile to Meet Your Application Needs
This sensor can measure both pH and ORP (Redox), and has a built in digital temperature sensor. It is pressure resistant up to 4 barg (58 psig), has a watertight connector and can withstand repeated sterilization and autoclave cycles.
