E4 Electronic Pipette LTS E4-5000XLS
E4™ XLS electronic single-channel pipette, 500-5000 μL, uses LTS™ LiteTouch™ tips. Simple operation, advanced modes. Password-protection, autoclavable shaft, ejector (E4-5000XLS)
Material No.: 17012312
Performance Champion
Master your application with Rainin’s E4 XLS+ single channel pipettes. With its advanced features and revolutionary new approach to navigation, the E4 XLS+ raises the bar on pipetting control and simplicity. The E4’s sophisticated modes and options are extremely intuitive and easy to access, allowing you to master many lab applications with one pipette.
Highlights
Unsurpassed Functionality
Intuitive operation with joystick graphical navigation. Multiple modes for any pipetting needs. Save favorite protocols to reduce workflow and errors.
Highest standards, peace of mind
State of the art design for supreme accuracy and precision with low cost of ownership. RFID tag aids GLP/GMP compliance via advanced asset management.
Complete compliance and configurability
Password protection of settings, protocols and service alarms for SOP adherence and GLP/GMP compliance. Tailor the pipette configuration for any task.
Specifications
Specifications - E4 Electronic Pipette LTS E4-5000XLS
| Volume Range | 500 µL – 5,000 µL |
| Increment (electric) | 5 µL |
| Volume | 500 µL 2,500 µL 5,000 µL |
| Random Error ≤ | @2500 µL: 0.20 % / 5.0 µL @500 µL: 0.60 % / 3.0 µL @5000 µL: 0.16 % / 8.0 µL |
| Systematic Error ± | @2500 µL: 0.60 % / 15 µL @500 µL: 2.4 % / 12 µL @5000 µL: 0.60 % / 30 µL |
| Tip Technology | LiteTouch System (LTS) |
| Channels | 1 |
| Maximum Volume | 5 mL |
| Pipette Type | Electronic |
Documentation
Accessories
Electronic Pipette Accessories
This reagent reservoir is intended for both multichannel and single channel pipettes. Holding 75 mL, this 20 pack reservoir is a great addition for repeat dispensing.
Material No.: 17007887
This 25 pack reagent reservoir is intended for both multichannel and single channel pipettes. Holding 75 mL, this reservoir comes with a lid to limit debris from falling into it and is a great addition for repeat dispensing.
Material No.: 17007886
Adapter for Hang-UpsTM 17003024 for use with Rainin electronic and multichannel pipettes on Hang-Ups and Carousel stand. 3 adapters per pack (HU-A3)
Material No.: 17006638
Hang-UpsTM pipette holders, 3 mounted on a shelf bracket, for manual pipettes, electronic and multichannels; used with adapter 17006638. 1 shelf bracket with 3 Hang-Ups in pack (HU-S3)
Material No.: 17004992
Rechargeable battery for E4™ XLS+, lithium-ion (Li-Ion), 3.7 VDC, 1250 mAh (E4-BATT)
Material No.: 17012337
RFID Reader to use with onboard RFID chip in Rainin XLS+ pipettes, for pipette asset tracking and service reminders, bundled with LABX™ Direct Pipette Scan software (RFID-KIT)
Material No.: 17011966
RFID Reader to use with the onboard RFID chip in Rainin XLS+ pipettes, for pipette asset tracking and service reminders (RFID-RDR)
Material No.: 17011964
LABX™ Direct Pipette Scan software for use with RFID Reader to display data from the RFID chip in Rainin XLS pipettes, for pipette asset tracking, service reminders (LABX-PIPET)
Material No.: 17011965
Manual Pipette Accessories
Carousel Stand, holds up to 7 Rainin™ manual pipettes and Gilson® Pipetman®, as well as Rainin electronic and multichannel pipettes with adapter 17006638. 1 per pack (CR-7)
Material No.: 17001255
Hang-Ups™ pipette holders, for manual pipettes, electronic and multichannels; used with adapter 17006638. Magnetized for ferrous surfaces, 3 adhesive disks supplied. 3 per pack (HU-M3)
Material No.: 17003024
Consumables
Large-Volume Pipette Tips
Pipette Tips RC LTS 5000µL 1000A/1
Bulk tips, 5000 μL max. volume, for Rainin pipettes with LTS™ LiteTouch™, 1000 tips in 4 bags of 250 (RC-L5000)
Material No.: 17001133
Removable Cover Racks

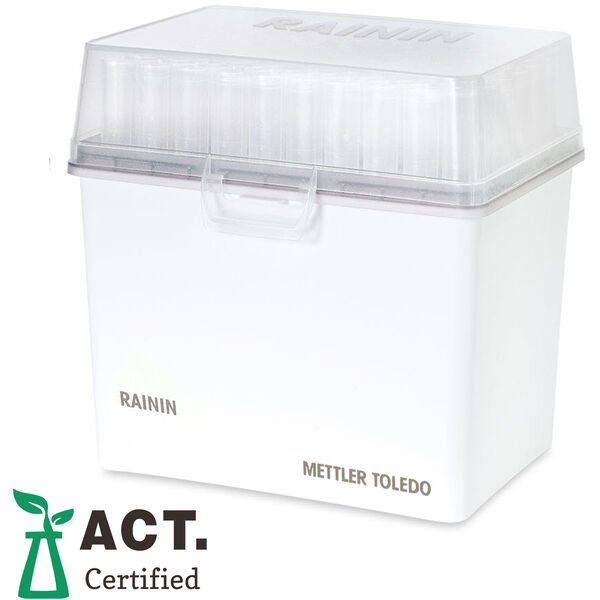

Racked tips, 5000 μL max. volume, for Rainin pipettes with LTS™ LiteTouch™, 192 tips in 8 racks of 24.
Material No.: 30389256
Racked tips, 5000 μL max. volume, for Rainin pipettes with LTS™ LiteTouch™, Sterilized, 192 tips in 8 racks of 24.
Material No.: 30389257
