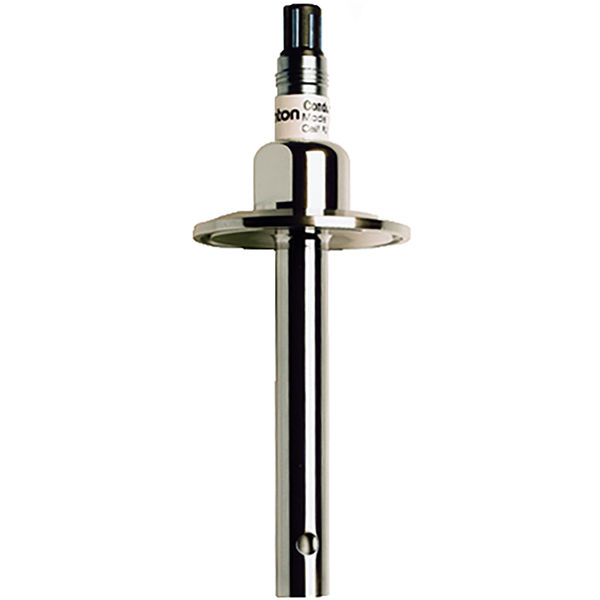

Cond Sensor 1.5Tri 0.1C SS VP
This analog conductivity sensor is a 2-electrode sensor. Due to its highly polished 316L stainless steel electrodes, this sensor is suitable for hygienic applications such as pharmaceutical water.
Material No.: 58031234
Highlights
Specifications
Specifications - Cond Sensor 1.5Tri 0.1C SS VP
| Operating Range (µS/cm) | 0.02 – 2,000 |
| Temperature Sensor | PT 1000 |
| Cell Constant | 0.1 cm-1 |
| Connection | VP (IP 68) , 1.5 inch Tri-Clamp |
| Connector | VarioPin |
| Material certification | EN10204 3.1 & USP <88> Class VI |
| Measurement Technology | Conductive |
| Fitting material | 316L SS |
| Insertion length | 85mm |
| Model Family | Analog |
| Hazardous Area Approvals | No |
| Measured Pressure Resistance | 151 psig @ 311 °F and 450 psig @ 77 °F (11 bar @ 155 °C and 31 bar @ 25 °C) |
| Electrode Material | SS 316L |
| Primary Media/Application | Pharmaceutical Waters Pharmaceutical/Life Science Production |
| Hygienic/Biocompatibility Approvals | Yes |
| Process fitting | 1½" Tri-Clamp |
| Cell Constant (accuracy) | ± 1% |
| Electrode Configuration | 2-electrode |
| Measurement Range | 0.02 - 2,000 µS/cm |
| Sensor Material | 316L SS |
