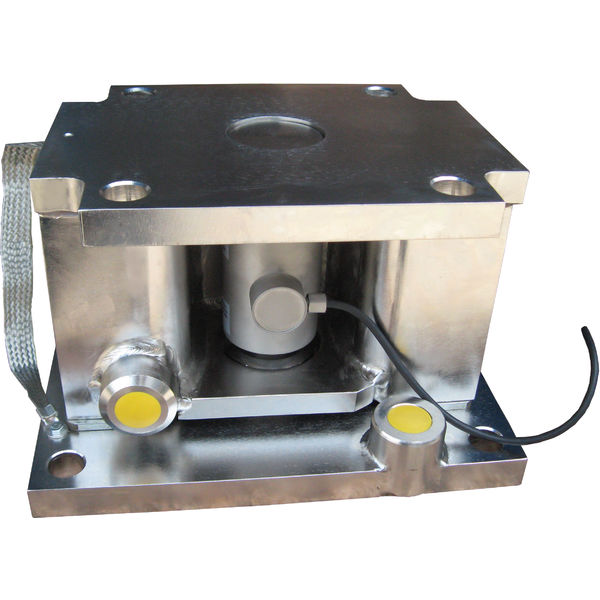

Weigh Module SWC515 CS 100T - Discontinued Product
Discontinued since: Apr, 2026
Material No.: 72249171
Highlights
Multi Purpose – always Suitable
For static & dynamic tanks, hoppers, mixers & conveyors. With the high accuracy fully approved stainless hermetic load cell it fits all applications.
Safety & Protection
Features include 360° self-checking, dual lift-off & down-stops, ground strap, hazardous approvals & IP68 stainless load cell. Peace of mind.
Ease of Installation
Product is light, low profile & aligned & rigidly locked for installation, with or without the load cell installed. Orientation is not critical.
Specifications
Specifications - Weigh Module SWC515 CS 100T
| Maximum Capacity | 220,000 lb (100,000 kg) |
| Material | Mild Steel galvanized |
| Metrology | OIML C3, NTEP IIIL 10,000 |
| Load Cell | 0782/GD, 13 m cable |
| Accuracy | Standard |
| Protection Rating | IP68/69k |
| Environment / Material | Normal / Carbon Steel |
| Hazardous Approval | ATEX FM |
| Criticality | Standard |
