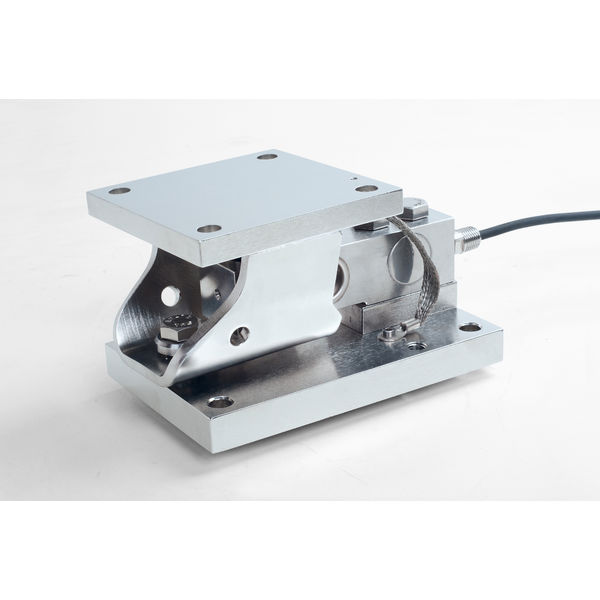

Weigh Module SWB505 SS 220KG/500LB
Weigh Module SWB505 MultiMount Stainless Steel 220kg/500lb
Material No.: 61043216
Highlights
Static & Dynamic Weighing
Multipurpose weigh module provides the highest accuracy for both static and dynamic applications. Self-aligning rocker pin ensures repeatability.
Safety & Protection
Features include 360° checking, built-in anti-uplift and down stops, hazardous area approvals & IP68 stainless steel load cell. Peace of mind.
Ease of Installation/Service
Product is aligned for installation & transition to weighing mode is easy. Minimal lift required to remove load cell.
Specifications
Specifications - Weigh Module SWB505 SS 220KG/500LB
| Maximum Capacity | 500 lb (220 kg) |
| Material | Stainless Steel V2A (AISI 304) |
| Metrology | NTEP III 5M OIML C3 |
| Load Cell | 0745A 15 ft (4.5m) cable |
| Accuracy | Standard |
| Protection Rating | IP68/69k |
| Environment / Material | Wash-down / Stainless Steel |
| Hazardous Approval | ATEX FM cFM |
| Criticality | Standard |
