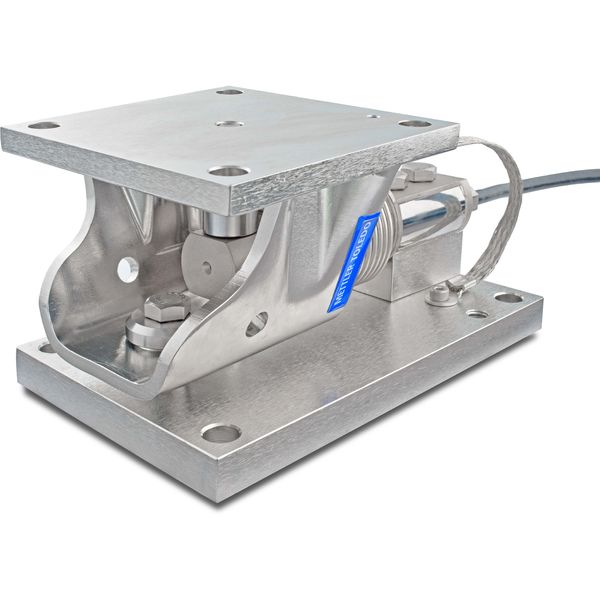

Weigh Module SWB505 CS 200kg C6
Weigh Module SWB505 MultiMount Carbon Steel 200kg/440lb C6
Material No.: 30219966
Highlights
Static & Dynamic Weighing
Multi-purpose weigh module provides the highest accuracy for both static and dynamic applications. Self-aligning rocker pin ensures repeatability.
Safety & Protection
Features include 360° checking, built-in anti-uplift and down stops, hazardous-area approvals and IP68 stainless-steel load cell.
Ease of Installation/Service
Product is aligned for installation & transition to weighing mode is easy. Minimal lift required to remove load cell.
Specifications
Specifications - Weigh Module SWB505 CS 200kg C6
| Maximum Capacity | 440 lb (200 kg) |
| Material | Zinc plated steel |
| Metrology | OIML C6, NTEP IIIL 10,000 |
| Load Cell | MTB, 3 m cable |
| Accuracy | High |
| Protection Rating | IP68 IP69k |
| Environment / Material | Normal / Carbon Steel |
| Hazardous Approval | ATEX FM cFM |
| Criticality | Standard |
| Cable | 3 m |
