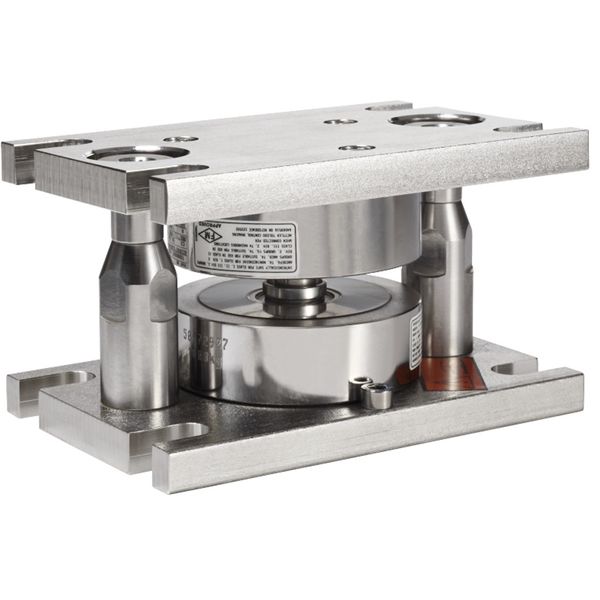

Weigh Module 0970 3.5T C6 RDT
Material No.: 61046859
Highlights
Always Suitable
For static & dynamic tanks, hoppers, mixers & conveyors. With the high accuracy fully approved stainless hermetic load cell it fits all applications.
Safety & Protection
Features include 360° self-checking, dual lift-off & down-stops, hazardous approvals & IP68 stainless load cell. Peace of mind.
Ease of Installation
Product is light, low profile & aligned & rigidly locked for installation, with or without the load cell installed. Orientation is not critical.
Specifications
Specifications - Weigh Module 0970 3.5T C6 RDT
| Maximum Capacity | 7,865 lb (3,500 kg) |
| Material | WM 316L, LC 17-4PH |
| Metrology | NTEP IIIL 10,000 OIML C6 |
| Load Cell | 5m (16.6ft) cable RLC |
| Accuracy | High |
| Protection Rating | IP68 |
| Environment / Material | Frequent wash-down / Hygienic |
| Hazardous Approval | ATEX FM |
| Criticality | Standard |
