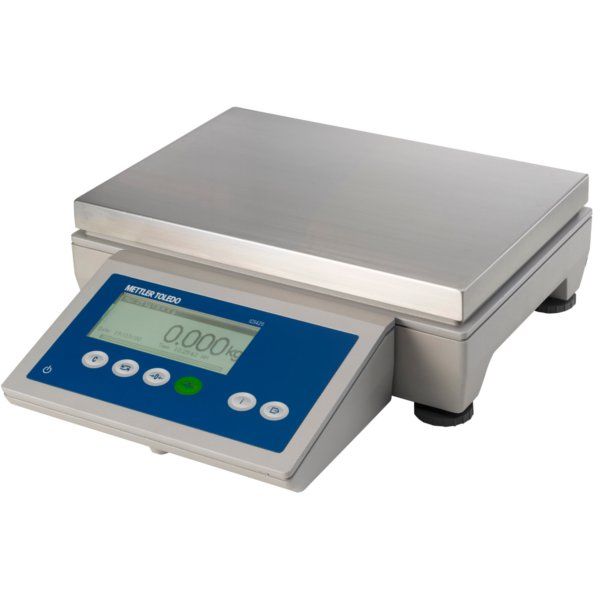

Compact Scale ICS425s-15LA/f/65
Material No.: 22023058
Highlights
Strain Gauge Technology
ICS425, the basic weighing level solution, is optimized for quick and easy weighing applications.
Durable and Rugged
Tough enough for use in industrial environments with aluminum die cast housing, overload protection and robust foil keypad.
Dust Proof
IP65 ingress-protected housing is optimal for use in dusty environments.
Specifications
Specifications - Compact Scale ICS425s-15LA/f/65
| Maximum Capacity | 30 lb (15 kg) |
| Readability | 0.002 lb (0.2 g) |
| Readability (Certified) | 0.005 lb |
| Repeatability (sd) | 0.00022 lb (0.1 g) |
| Platform Size (LxHxW) | 11 in x 4.3 in x 13.8 in (240 mm x 110 mm x 350 mm) |
| Material | Aluminum die casting |
| Protection Rating | IP65 |
| Repeatability | 0.0005 lb |
| Hazardous Approval | No |
| Housing | Aluminum Die Casting |
| Interfaces | RS232 |
| Display | Graphic LCD with backlight |
| Repeatability, typical | 0.1 g |
| Repeatability, (typical) | 0.00022 lb |
| Weighing Pan Dimensions (LxW) | 228 mm x 228 mm |
| Application Software | Dynamic weighing Simple weighing |
| Data Interface | Ethernet Serial USB |
| Hazardous Area | Non-hazardous area |
| Legal for Trade | NTEP |
| Applications | Dynamic weighing Simple Weighing |
| Environment | Dusty & Light Wet (IP65) |
| Voltage | AC Version Battery Version |
| Scale Interface | SICSpro |
| Interfaces (Optional) | Discrete I/O Ethernet RS422 RS485 USB |
| Hygienic Design | No |
| Data Management | Convenient Printing: Easy creation of print & label templates Custom Print Formats: Odette, AIAG, Galia etc. |
| Platform Type | Compact Scale |
