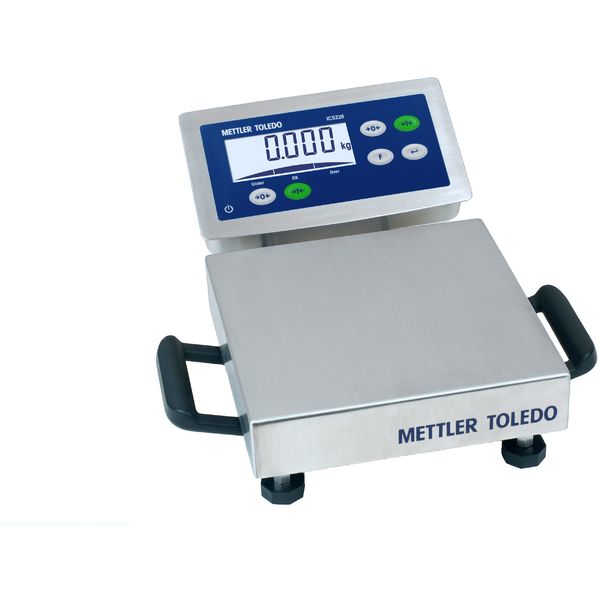

Compact Scale ICS226-QA3RCL
Material No.: 72251851
Specifications
Specifications - Compact Scale ICS226-QA3RCL
| Maximum Capacity | 6 lb (3 kg) |
| Readability | 0.002 lb (0.5 g) |
| Repeatability (sd) | 0.00044 lb (0.2 g) |
| Platform Size (LxHxW) | 9 in x 3.07 in x 9 in (228 mm x 78 mm x 228 mm) |
| Material | Stainless Steel |
| Protection Rating | IP65 Platform IP67 terminal |
| Repeatability | 0.002 lb |
| Hazardous Approval | No |
| Housing | Stainless Steel |
| Interfaces | RS232 |
| Display | 7 segment LCD with backlight |
| Repeatability, typical | 0.2 g |
| Repeatability, (typical) | 0.00044 lb |
| Weighing Pan Dimensions (LxHxW) | 9 in x 1.97 in x 9 in (228 mm x 50 mm x 228 mm) |
| Power Supply (AC/DC) | 100 V – 240 V / 6 V – 6 V |
| Data Interface | Serial |
| Hazardous Area | Non-hazardous area |
| Environment | Dusty & Light Wet (IP65) |
| Voltage | AC Version Battery Version |
| Scale Interface | Analog |
| Hygienic Design | No |
| Data Management | Simple Printing: Easy printing of weighing data |
| Platform Type | Compact Scale |
