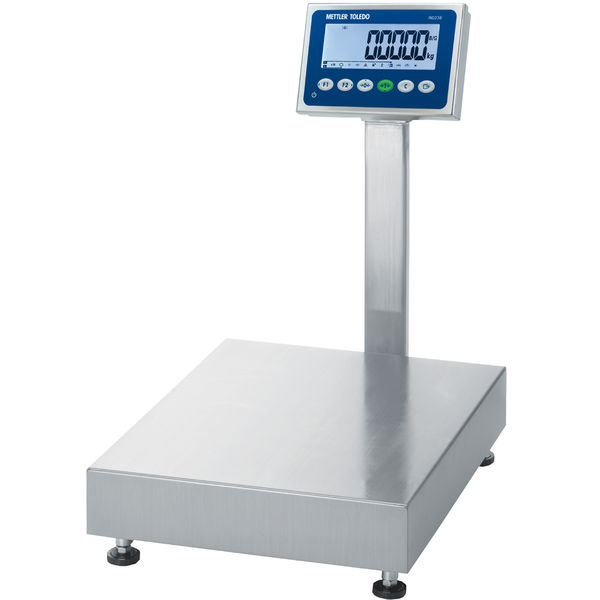

Bench Scale BBA238-8B150R/S
For Demanding Applications.
Simple & Intuitive
The IP66 and IP67-rated scale is easy to operate. The straightforward setup of different functions requires minimal operator training.
Easy to Clean
The open and sturdy stainless-steel platform design, built according to hygienic standards, allows fast, thorough and easy cleaning.
Execution
The scale features a Nickel Metal Hydride rechargeable battery for >80 hours stand alone operation. The stand is included with scale.
Material No.: 30080055
Product Family:bench-scale00030140
Specifications - Bench Scale BBA238-8B150R/S
| Maximum Capacity | 150 kg |
| Readability | 20 g |
| Material | Stainless Steel |
| Protection Rating | IP67 terminal IP69k Platform |
| Repeatability (sd) | 10.1 g |
| Scale Interface | Analog |
| Platform Size (LxHxW) | 400 mm x 134.5 mm x 500 mm |
| Display | 7 segment LCD with backlight |
| Interfaces | RS232 |
| Housing | Stainless Steel |
| Repeatability, typical | 10.1 g |
| Weighing Pan Dimensions (LxHxW) | 400 mm x 82 mm x 500 mm |
| Hazardous Approval | No |
| Application Software | Dynamic Weighing Counting Simple weighing Over Under Checkweighing |
| Data Interface | Serial USB Discrete I/O |
| Environment | Wet & Harsh Wet (≥IP66) |
| Hazardous Area | Non-hazardous area |
| Applications | Simple Weighing Dynamic weighing Counting Over Under Checkweighing |
| Voltage | Battery Version AC Version |
| Interfaces (Optional) | USB RS422 RS485 Discrete I/O |
| Hygienic Design | No |
| Cable | 2.5 m |
| Platform Type | Bench Scale |
