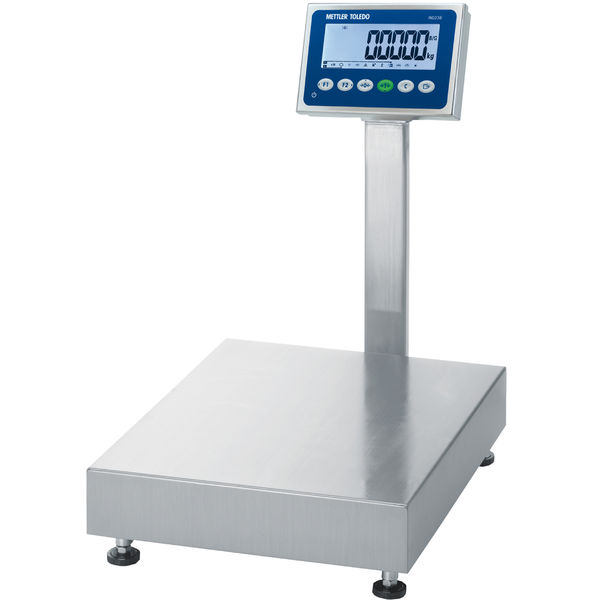

BBA236-BC300/PBA439

Name: BBA236-BC300/PBA439
Brand: Mettler Toledo

The BBA236 stainless-steel scale is a robust and cost-effective scale for versatile industrial use in any dry or liquid splashing environment.

Material No.: 30598207031

Highly Visible Display

For excellent readability under any light condition, the BBA236 scale features a large, 60mm high LCD display with an adjustable white backlight.

Easy to Clean - IP65

The open, sturdy and straightforward platform design allows for efficient cleaning and helps to reduce possible bacterial contamination.

Immediate Status Indication

Over/under checkweighing is easy and accurate with immediate status indication. Target-weight setup is simple to improve process accuracy.

Innovative and User Friendly

In addition to the 5 tactile and responsive standard keys (On/Off, Zero, Tare, Clear, Print) the BBA236 is the first of its class to feature two freely definable function keys. These allow for fast and easy switching between different available functions.

Excellent Overload Protection

Optimally placed and specifically adjusted overload stops grant the best possible protection against load cell damage. Easily adjustable feet allow for reliable and precise scale leveling.

Full Control at All Times

All functions (directly selected using the function keys) and current scale status are always in easy sight providing a good overview for ergonomic operation.

Specifications - BBA236-BC300/PBA439

Maximum Capacity	500 lb (300 kg)
Readability	0.05 lb (20 g)
Readability (Certified)	0.1 lb (100 g)
Material	Stainless Steel V2A (AISI 304)
Repeatability (sd)	0.01 lb (4.5 g)
Protection Rating	IP66/67 Terminal IP68/69k Platform
Scale Interface	Analog
Platform Size (LxHxW)	19.7 in x 4.36 in x 25.6 in (500 mm x 110.8 mm x 650 mm)
Repeatability	0.05 lb
Repeatability, typical	4.5 g
Repeatability, (typical)	0.01 lb
Hazardous Area	Non-hazardous area
Legal for Trade	NTEP OIML
Environment	Wet & Harsh Wet (≥IP66)
Hygienic Design	Yes
Platform Type	Bench Platforms
