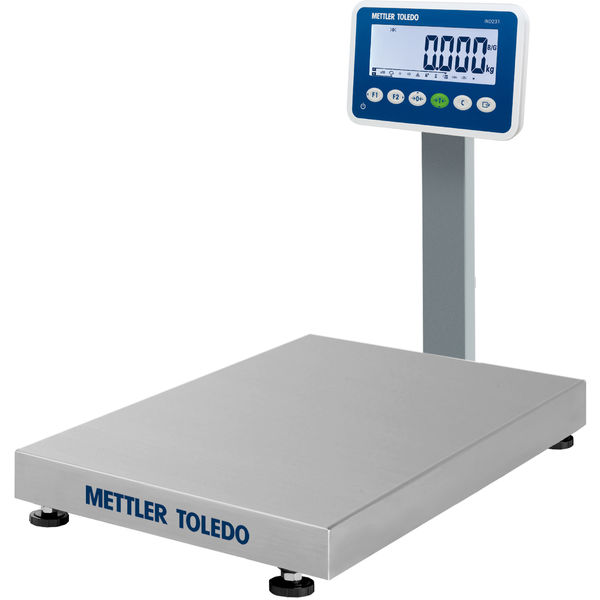

Bench Scale BBA231-3A6A

For Routine Applications.BBA231 - Bench Scale

Multi-Functional

Fast, economical and multi-functional for any straight weighing, counting, checkweighing or classifying application in a dry environment.

Visible and Fast

The terminal, with its large LCD display, is easy to operate and features a built-in RS232 interface to communicate with a printer or PC.

Lasting Battery Power

The scale is powered by 240 VAC or 6 AA dry batteries for >80 hours of stand-alone operation.

Call for Quote
Specifications - Bench Scale BBA231-3A6A
Maximum Capacity
6 kg
Readability
0.5 g
Repeatability (sd)
0.2 g
Platform Size (LxWxH)
9.5 in x 11.8 in x 2.7 in (240 mm x 300 mm x 68.5 mm)
Material
Terminal: Plastic; Platform: Carbon Steel
Protection Rating
IP54 Terminal; IP65 Platform
Display
7 segment LCD with backlit
Interfaces
RS232
Housing
Terminal: Plastic; Platform: Carbon Steel
Repeatability
0.5 g
Application Software
Counting; Dynamic Weighing; Over Under Checkweighing; Simple weighing
Hazardous Approval
No
Repeatability (typical)
0.00044 lb
Repeatability (typical)
0.2 g
Weighing Pan Dimensions (HxLxW)
1.5 in x 9.5 in x 11.8 in (38 mm x 240 mm x 300 mm)
Applications
Counting; Dynamic weighing; Over Under Checkweighing; Simple Weighing
Data Interface
Serial
Dimensions/Platform Size
</=400 mm; from 6.3" to 15.7"
Environment
Dry (<IP65)
Scale Interface
Analog
Voltage
AC Version; Battery Version
Hygenic Design
No
Cable
3.3 ft (1 m)
Platform Type
Bench Scale
Material Number(s)
30080304
