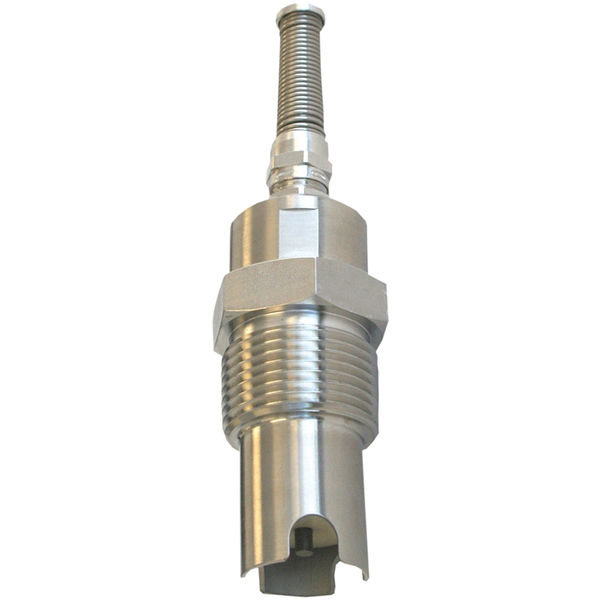

Cond Sensor 1NPT 0.4C SS HT 1.1 VP
on-line conductivity sensor for industrial boilers that can measure directly in the blowdown line without sample cooling
Material No.: 58031264
Highlights
Specifications
Specifications - Cond Sensor 1NPT 0.4C SS HT 1.1 VP
| Operating Range (µS/cm) | 10 – 20,000 |
| Temperature Sensor | PT 1000 |
| Cell Constant | 0.4 cm-1 |
| Connection | VP (IP68), 1 inch NPT |
| Cable | 2 ft (0.6 m) |
| Connector | VarioPin |
| Measurement Technology | Conductive |
| Fitting material | 316L SS |
| Insertion length | 28mm |
| Model Family | Analog |
| Hazardous Area Approvals | No |
| Measured Pressure Resistance | 250 psig @ 392 °F and 500 psig @ 77 °F (17 bar @ 200 °C and 35 bar @ 25 °C) |
| Electrode Material | SS 316L |
| Primary Media/Application | Other Industrial Processes Other Water Processes Pharmaceutical Waters Pharmaceutical/Life Science Production Wastewater |
| Hygienic/Biocompatibility Approvals | No |
| Process fitting | 1" NPTM |
| Cell Constant (accuracy) | ± 1% |
| Electrode Configuration | 2-electrode |
| Measurement Range | 10 - 20,000 µS/cm |
| Sensor Material | 316L SS |
