Masscomparator XK2003KLC
Highest level Reliability and Accuracy.Manual High-Capacity Mass Comparator, with 2500 kg capacity, 1 g readability, complete with IND930 Terminal all cables.
Intuitive and Reliable
Thanks to the bright color touchscreen, operation is intuitive and easy, and you can read the large figures accurately from a distance.
Centering Aid
The centering aid helps you position your objects precisely on the weighing platform, ensuring high reproducibility.
Made Durable
The high-grade steel housing reduces magnetic influences, ensures a long lifetime and is easy to clean.
Material No.: 30594036
Features
One-Click Certificate
The optional MC Link calibration software automatically stores all your weight calibration and other metrological relevant data in a secure database. Regulatory compliant calibration certificates are issued with one click.
Ingenious Accessories
The specially designed LevelMatic weighing pans and draft shields for the XK-KC mass comparators help to reduce eccentricity errors and influences from drafts.
Specifications
Specifications - Masscomparator XK2003KLC
| Maximum Capacity | 2,500 kg |
| Readability | 1 g |
| Repeatability ABA at Nominal Load | 7 g (2,000 kg) |
| Repeatability ABA at Low Load | 3 g (100 kg) |
| Measuring Time | 8 s |
| Repeatability nominal load | 9 g |
| Repeatability (Low Load) (5%) | 5 g |
| OIML Class | M1 M2 |
| Gravimetric eccentricity elimination | Optional |
| Software | Optional MC Link 2 Mass Calibration Software |
| Dimensions (LxHxD) | 1,500 mm x 185 mm x 1,250 mm |
| Weight | 350.5 kg |
| Repeatability, typical | 7 g |
| Draftshield | Optional |
Documentation
Product Brochures
Our complete range of vacuum, automated, robotic and manual mass comparators, including volume, density, magnetism, weights, and worldwide service sup...
Clever, innovative software solutions, from stand-alone to networked systems supporting Manual, Automated and Robotic Mass Comparators.
Complete Mass Laboratory Solutions - Mass Comparators, Software and Weights
White Papers
Maximize security and deliver the highest accuracy in mass calibration with METTLER TOLEDO's Robotic Mass Comparators. Robotic mass comparator can han...
Efficient mass calibration can be achieved with simple workflows and reliable software for traceable data handling.
Learn to minimize measurement uncertainty by controlling or correcting physical influences which affect mass calibration.
Datasheets
The XPR ultra microcomparator comes supplied with our MC Link weight calibration software to provide seamless calibration processes with 100% data int...
METTLER TOLEDO micro comparators guarantee top measurement performance and full traceability of weighing results. Thanks to the hanging weighing pan,...
Extremely convenient to use. A touch of the finger is enough to activate the setting of the weighing parameters.
METTLER TOLEDO’s XPR small platform mass comparators offer the highest weighing accuracy for determination of mass up to 10 kg. The combination of the...
The all-in-one software solution for Mass Calibration laboratories of all sizes.
METTLER TOLEDO’s XPR large platform mass compar ators offer the highest weighing accuracy for determi nation of mass up to 64 kg. Thanks to a resoluti...
METTLER TOLEDO's datasheet for XK-KC High Capacity Comparators/Balances gives an overview of features and technical specifications of the product.
METTLER TOLEDO’s XPR micro-analytical comparators offer the highest weighing accuracy for determination of mass up to 200 g. The combination of the in...
Climate Measurement Systems - Klimet A30, ClimaLog30 and DataLog30 - Professional Climate systems for software integration in Calibration and Referenc...
Installation Instructions
Short Instruction for the XPE56/26/205CDR/505 Comparator Balances for simple effective instrument operation.
Short Instruction for the XK-KC mass comparator for simple effective instrument operation.
Reference Manual for the XPE-C mass comparator covering weight comparisons up to 520g at top accuracy.
Operating Instructions for the XPE-KC mass comparator covering weight comparisons up to 6000 kg at top accuracy.
These operating instructions apply to all AX106, AX206, AX1005, AX2005 and AX1004 mass comparators.
Full instructions and technical guidance for safe and correct usage of your balance.
Easy reference guide to help you quickly set-up and start using your balance and comparator.
Accessories
Crane Test Weights / Heavy-Capacity Test Weights

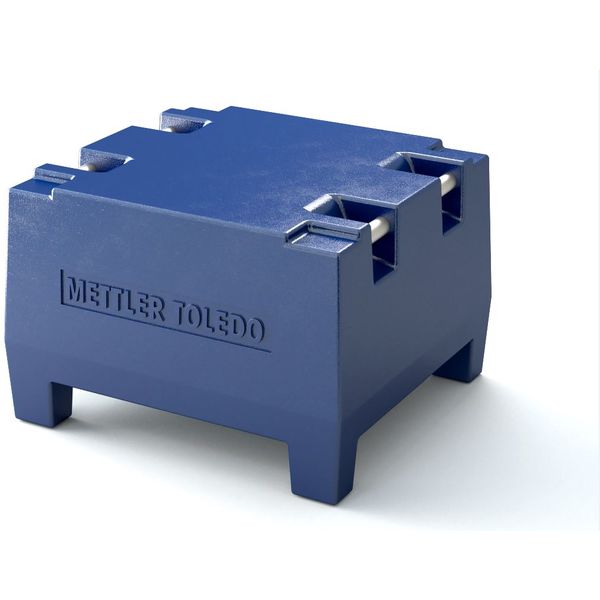

Weight heavy cap. 2000kg M1 C
Heavy Weight, incl. calibration certificate, cast-iron, stackable
Material No.: 11125510
( incl. VAT)
Draft Shields

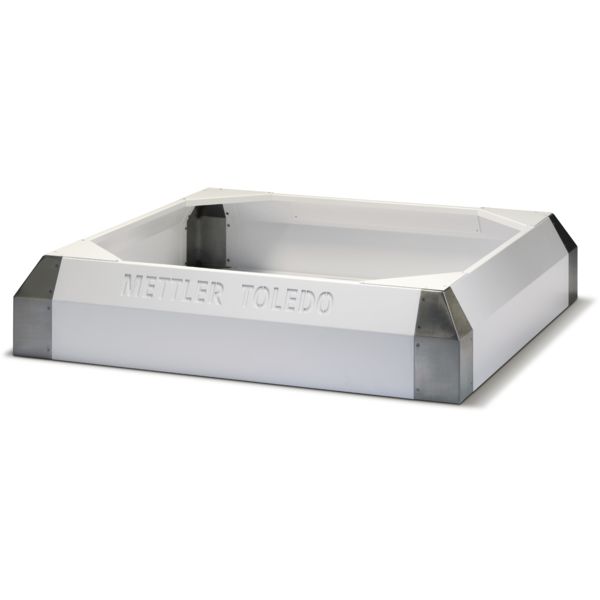

Draft shield for the XK2003KLC and XK6002KLC mass comparators
Material No.: 11116558
( incl. VAT)
Weighing Pans

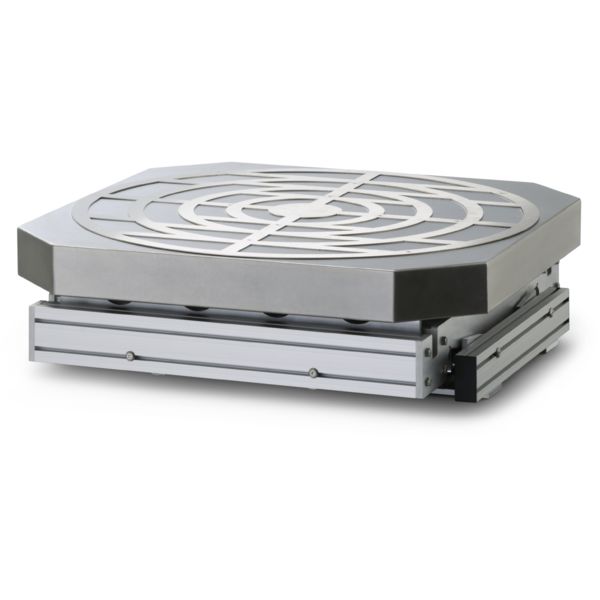

LevelMatic 5000 weighing pan for mass comparators
Material No.: 11116554
( incl. VAT)
