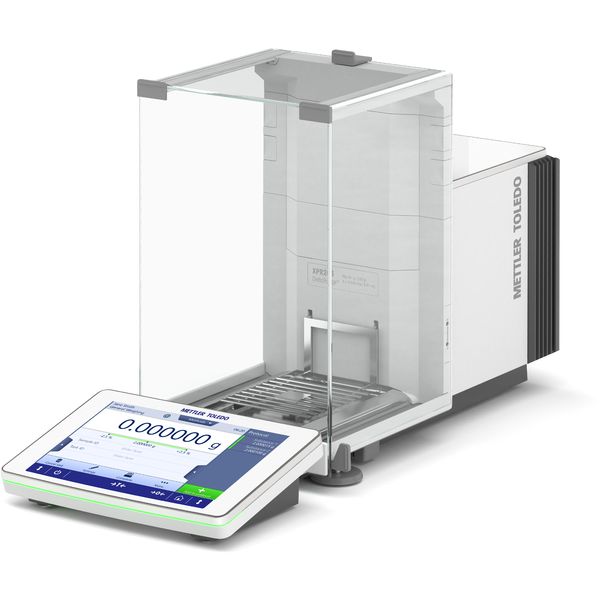

Comparator XPR226CDR/M
Manual mass comparator, 220 g / 121 g capacity, 10 µg / 5 µg readability, XPR terminal, ProFACT built-in adjustment, mass calibration software, MC Link included, motorized draft shield
Material No.: 30594509
Highlights
Specifications
Specifications - Comparator XPR226CDR/M
| Maximum Capacity | 220 g/121 g |
| Readability | 0.01 mg 0.005 mg |
| Weight | 9.4 kg |
| Minimum Weight (USP, 0.1%, typical) | 8 mg |
| Adjustment | Internal (automatic/FACT) |
| Legal for Trade | Yes |
| Weighing Pan Dimensions (WxD) | 78 mm x 73 mm |
| Dimensions (LxHxD) | 195 mm x 292 mm x 485 mm |
| Repeatability, typical | 4 µg |
| Readability (Certified) | 1 mg |
| Compliance Options | Alibi Memory Data Integrity Log history (21 CFR Part 11 Compliant) Log history (Basic Metadata) Password protection |
| Approved Balance | Yes |
| Repeatability ABA at Nominal Load | 20 µg (200 g) |
| Repeatability ABA at Low Load | 5 µg (10 g) |
| Beta (Fine range) | 0.00000914 g |
| OIML Class | E1 E2 F1 F2 M1 M2 M3 |
| Beta (Coarse range) | 0.00000916 g |
| Balance Line | XPR |
| Balance Type | Analytical Balance |
| Alpha (Fine range) | 0.00000572 g |
| Features | Automatic doors Automatic static detection Leveling guidance Password protection Supports 21 CFR Part 11 (LabX compatible) User management |
| User Management | Password protection Unlimited Amount of Users User Rights |
| Linearity ± | 0.1 mg |
| Repeatability nominal load | 25 µg |
| Documentation Options | Automatic Documentation (21 CFR Part 11 Compliant) Basic Electronic Documentation Printing |
| Automatic Static Detection | Yes |
| Settling Time | 2 s |
| Interfaces | Bluetooth (optional) Ethernet (LAN) RS232 (integrated/optional) USB-A (to device) USB-B (to device) |
| Alpha (Coarse range) | 0.00000759 g |
| Price | $$$ |
| Linearity | 0.1 mg |
| Repeatability (Low Load) (5%) | 4 µg |
| Family | Excellence |
| Software | Optional MC Link 2 Mass Calibration Software |
| Level | Excellence |
| 21 CFR Part 11 Compliant Weighing | Yes |
| Automation Options | Automated Liquid Dispensing Automated Powder Dispensing Automated Workflows |
