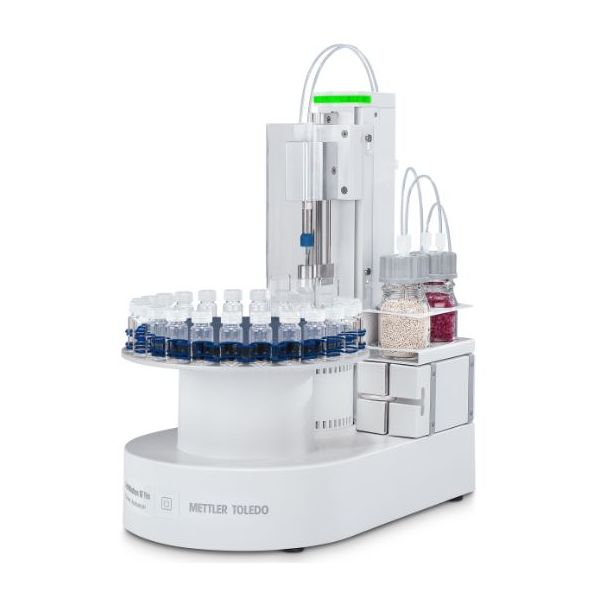

InMotion KF Flex Oven Autosampler (10mL)
Accurate and Compact.The InMotion KF autosampler is designed for water determination by the oven extraction technique. Upon heating to the sample-specific temperature, the water evaporates and is transferred into the titration vessel by a stream of dry air or nitrogen.
Maximize Lab Space
More compact than ever - up to 24 samples can be placed on a compact platform size of just 25 cm, maximizing the space in your laboratory.
Efficient Sample Preparation
The innovative one-piece cap increases lab efficiency, enabling safe and fast sample preparation with a reduced chance of chemical exposure.
Secure Gas Flow Control
Control the efficiency of the water extraction with digital gas flow control. Generate gas with the Air Pump AP200 or regulate with an SV2 valve
Material No.: 30407500
Features
One Click® Water Analysis
The One Click® user interface provides direct access to routine methods and provides clear information to the user. Each user can have a personalized homescreen: this helps to improve productivity and speeds up daily laboratory tasks.
Analysis Flexibility
Several sample series can be placed on the system and analyzed at different temperatures. If, for example, you have different samples, whose optimum water-release temperatures differ, they can be measured at different temperatures by queuing several methods.
Direct Control
The InMotion™ KF autosampler is completely controlled by a METTLER TOLEDO titrator: all parameters, such as the oven temperature, heating rate, and flow rate can be defined in the method.
At-a-Glance Status information
The StatusLight on the top of the InMotion KF shows you immediately if your analysis is still running, needs your attention, or is ready to run more samples. Use LabX to email results or a message to notify you of the current status when you're not in the lab.
Specifications
Specifications - InMotion KF Flex Oven Autosampler (10mL)
| Compatible titrators | Excellence Titrators (T7 & T9) Compact Titrators (C30SX, C30SD, V30S) |
| Integrated Digital Gas Flowmeter | Yes |
| Tube Set for Automatic Solvent Exchange | No |
| LabX® Titration Express / Server | Yes |
| Temperature Scan and Ramp Functionality | No |
| Number of Positions | 24 |
| Flexible Method with Multiple Loops | No |
| Air pump AP200 | Yes |
| Gas Stop Valve SV2 | Yes |
| Heated Transfer Tube | Optional |
| Solvent manager | Yes |
| SP280 Peristaltic Pump | No |
| Vial Volume (Borosilicate Glass) | 10 mL |
| Cap Type | One-Piece FEP Screw Cap |
| Dimensions (WxD) | 250 mm x 390 mm (447 mm) |
| Weight | 9.3 kg |
| Sensor Accuracy | +/- 5 mL / min |
| Temperature compensation | Yes |
| Supported Gases | Air, Nitrogen |
| Temperature Range | 40 °C – 280 °C |
| Accuracy | +/- 3 ºC |
| Stability | +/- 0.5 ºC |
| Reproducibility | +/- 0.5 |
| Heating Rate (/min) | 70 ºC / min |
| Cooling rate (for T > 100ºC) | > 20 ºC / min |
| Application Type | Automation solutions |
| Number of Samples per Series | 120 |
| Connectivity and Software | LabX software |
Documentation
Accessories
The Air Pump AP200 generates the gas flow needed to transfer the water extracted from the sample to the titration cell. An electronic gas flowmeter integrated in the autosampler precisely regulates and controls the gas flow.
Material No.: 30407441
( incl. VAT)
The Gas Stop Valve uses the lab’s own gas line to transfer the water extracted from the sample to the titration cell. An electronic gas flowmeter integrated in the autosampler precisely regulates and controls the gas flow.
Material No.: 30407442
( incl. VAT)
Consumables
Accessories

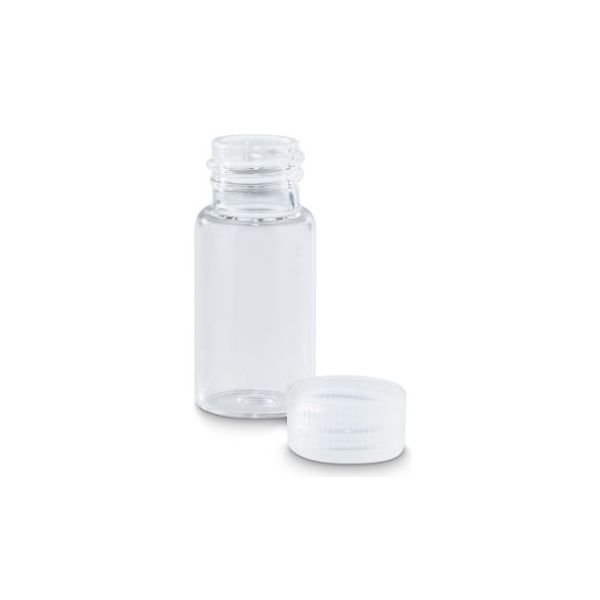

The METTLER TOLEDO sample vials, together with the special one-piece screw caps, are specifically designed to ensure the best performances with your InMotion KF Oven Autosampler.
Material No.: 30407445
( incl. VAT)

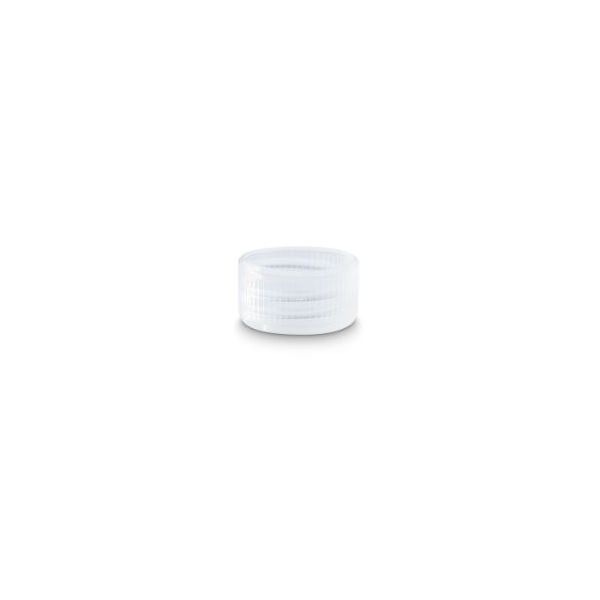

These special one-piece caps are compatible with both 5 and 10 mL vials. The caps are made of FEP, a copolymer with great performance at all temperature ranges for water analysis.
Material No.: 30407436
( incl. VAT)
The long needle is useful to extract water from viscous or oily samples more efficiently.
Material No.: 30407448
( incl. VAT)

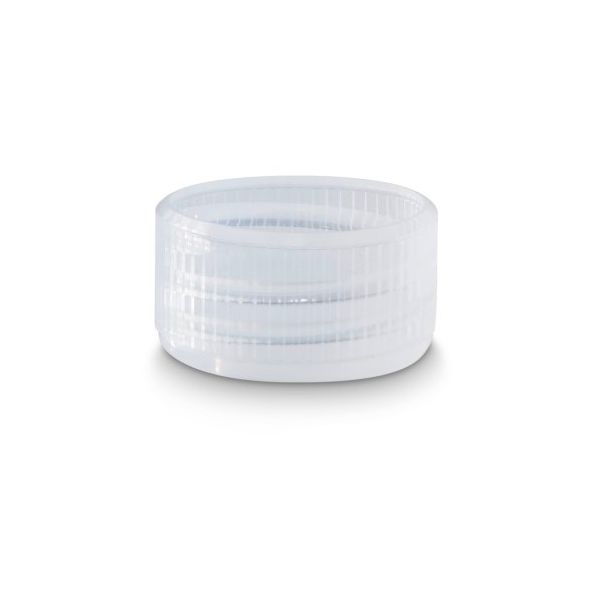

These special one-piece caps are compatible with both 5 and 10 mL vials. The caps are made of FEP, ensuring your samples are perfectly sealed in the vial and delivering great performance in all temperature ranges for water determination.
Material No.: 30462990
