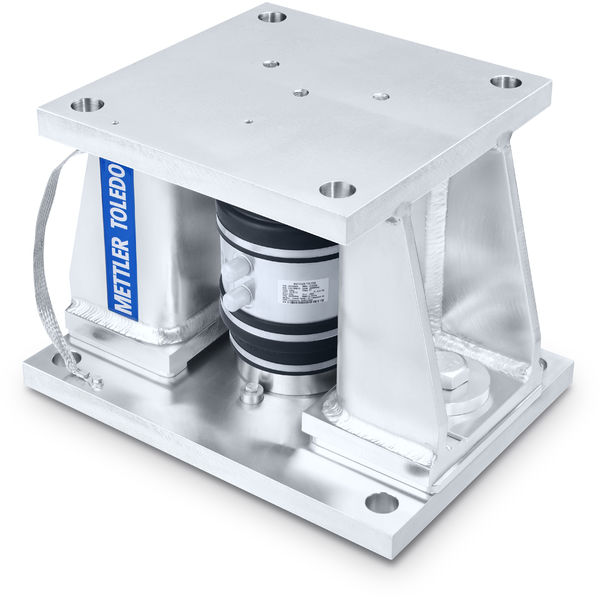

Weigh Module SWC615 PM CS 300t EN1090
Weigh Module SWC615 PM CS 300t EN1090
Material No.: 30459521
Highlights
Multi Purpose – always Suitable
For static & dynamic tanks, hoppers, mixers & conveyors. With the high accuracy fully approved stainless hermetic load cell it fits all applications.
Safety & Protection
Features include 360° self-checking, dual lift-off & down-stops, ground strap, hazardous approvals & IP68 stainless load cell. Peace of mind.
Predictive Diagnostics
Monitor single load cells for overload, temperature, breach, zero drift and enable reaction before system shuts down or measures incorrectly.
Specifications
Specifications - Weigh Module SWC615 PM CS 300t EN1090
| Maximum Capacity | 660,000 lb (300,000 kg) |
| Material | Carbon Steel |
| Metrology | OIML C1 |
| Load Cell | SLC820 |
| Accuracy | Low |
| Protection Rating | IP68/69k |
| Environment / Material | Normal / Carbon Steel |
| Hazardous Approval | ATEX, FM |
| Criticality | Condition monitoring |
Documentation
Download Materials
Accessories
Weigh Modules, Load Cells and Weight Sensors for Hazardous Area
POWERCELL Zone 1/Div 1 Kit 1-4 LCs
POWERCELL Zone 1/Div 1 includes a barrier, converter box and terminal to barrier home-run cable for 1-4 load cells.
Material No.: 30548986
( incl. VAT)
POWERCELL Zone 1/Div 1 Kit 5-8 LCs
POWERCELL Zone 1/Div 1 includes a barrier, converter box and terminal to barrier home-run cable for 5-8 load cells.
Material No.: 30548987
( incl. VAT)
POWERCELL Zone 1/Div 1 Kit 9-12 LCs
POWERCELL Zone 1/Div 1 includes a barrier, converter box and terminal to barrier home-run cable for 9-12 load cells.
Material No.: 30549028
( incl. VAT)
