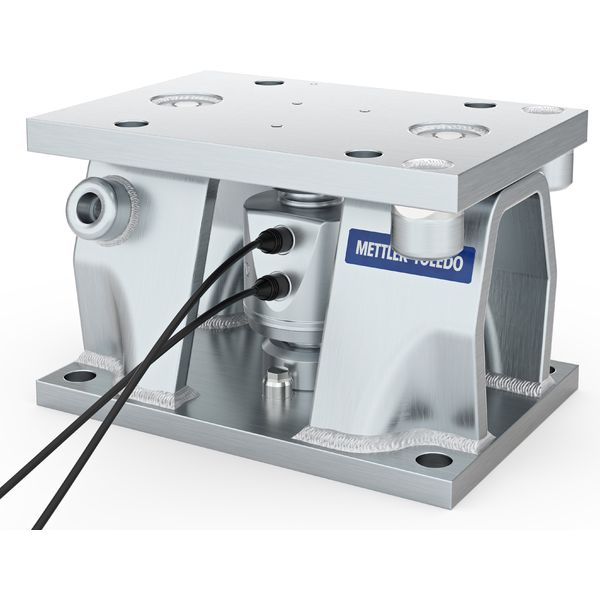

Weigh Module SWC615-A SS 50t EN1090
Multi-Purpose, Feature Packed.Weigh Module SWC615-A PowerMount Stainless Steel 50t EN1090
Multi Purpose – always Suitable
For static & dynamic tanks, hoppers, mixers & conveyors. With the high accuracy fully approved stainless hermetic load cell it fits all applications.
No Compromise on Safety
Mechanical safety features (360° self-checking, lift-off & down-stops protections), hazardous approvals & IP68 load cells bring peace of mind.
Condition Monitoring
Monitor single load cells for overload, temperature, zero drift etc. and enable reaction before the system shuts down or measures incorrectly.
Material No.: 30730561
Features
Right the First Time
Fast and straightforward installation w/o damaging the Load Cell, thanks to the SafeLock™ plates. Integrated space for hydraulic jack.
Effortless Cleaning
The open design allows fast and easy cleaning. No blind spots remain for dust accumulation.
Specifications
Specifications - Weigh Module SWC615-A SS 50t EN1090
| Maximum Capacity | 110,000 lb (50,000 kg) |
| Material | Stainless Steel V2A (AISI 304) |
| Metrology | OIML C3, NTEP IIIL 10,000 |
| Load Cell | POWERCELL PDX |
| Accuracy | Standard |
| Protection Rating | IP68/69k |
| Environment / Material | Wash-down / Stainless Steel |
| Hazardous Approval | ATEX FM |
| Criticality | Condition monitoring |
