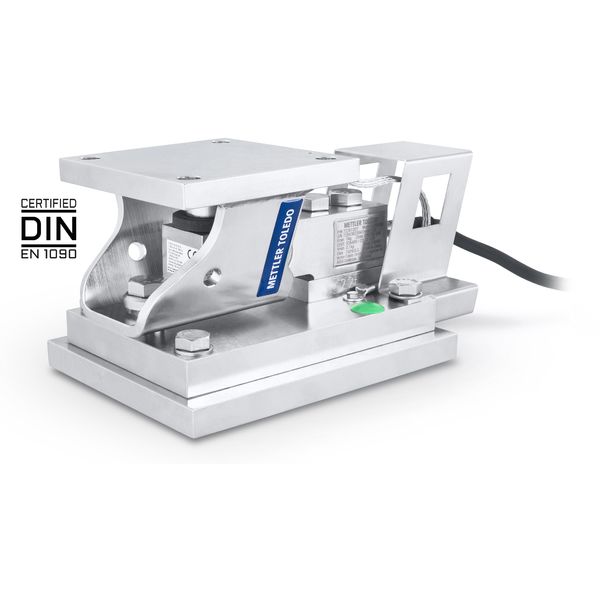

Weigh Module SWB605 316 2.2t C3 EN1090
Material No.: 30263351
Specifications
Specifications - Weigh Module SWB605 316 2.2t C3 EN1090
| Maximum Capacity | 5,000 lb (2,200 kg) |
| Material | 316 Stainless steel |
| Metrology | OIML C3, NTEP III 5M |
| Accuracy | Standard |
| Protection Rating | IP68/69k |
| Environment / Material | Frequent wash-down / Hygienic |
| Hazardous Approval | ATEX Cat. 3GD FM Division 2 |
| Criticality | Condition monitoring |
Documentation
Download Materials
Accessories
Weigh Modules, Load Cells and Weight Sensors for Hazardous Area
POWERCELL Zone 1/Div 1 Kit 1-4 LCs
POWERCELL Zone 1/Div 1 includes a barrier, converter box and terminal to barrier home-run cable for 1-4 load cells.
Material No.: 30548986
( incl. VAT)
POWERCELL Zone 1/Div 1 Kit 5-8 LCs
POWERCELL Zone 1/Div 1 includes a barrier, converter box and terminal to barrier home-run cable for 5-8 load cells.
Material No.: 30548987
( incl. VAT)
POWERCELL Zone 1/Div 1 Kit 9-12 LCs
POWERCELL Zone 1/Div 1 includes a barrier, converter box and terminal to barrier home-run cable for 9-12 load cells.
Material No.: 30549028
( incl. VAT)
