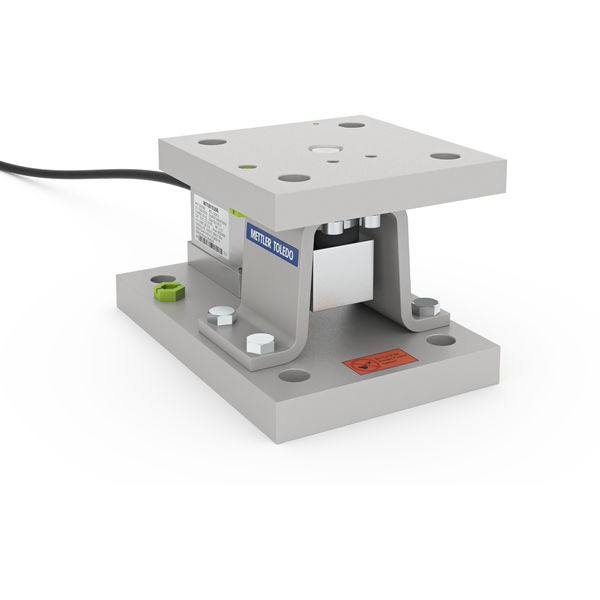

Weigh Module SWB405 2200kg 5m CS EN1090

Name: Weigh Module SWB405 2200kg 5m CS EN1090
Brand: Mettler Toledo

Weigh Module SWB405 MultiMount Carbon Steel 2.2t EN1090

Material No.: 30830598

All Safety on Board

Offers all safety features, including anti-uplift protection, 360° checking and down-stop protection to ensure the safety of tank weighing.

Easy Integration

SafeLockTM feature is built into SWB405 MultiMountTM weigh modules to make installation easier with all components locked in ideal initial positions.

Reliable Weighing

The hermetically sealed SLB415 load cell with IP68 rating can meet most industrial requirements.

Low Contamination Risk

The powder-coated SWB405 MultiMountTM ensures zinc and copper material content is below 1% to significantly reduce the risk of cross-contamination in Li-ion battery production.

Specifications - Weigh Module SWB405 2200kg 5m CS EN1090

Maximum Capacity	5,000 lb (2,200 kg)
Material	Powder Coated Carbon Steel
Metrology	OIML C3, NTEP III 5M
Load Cell	SLB415
Environment / Material	Normal / Carbon Steel
Protection Rating	IP68 NEMA 6
Hazardous Approval	ATEX, FM
Criticality	Standard
Cable	5 m
