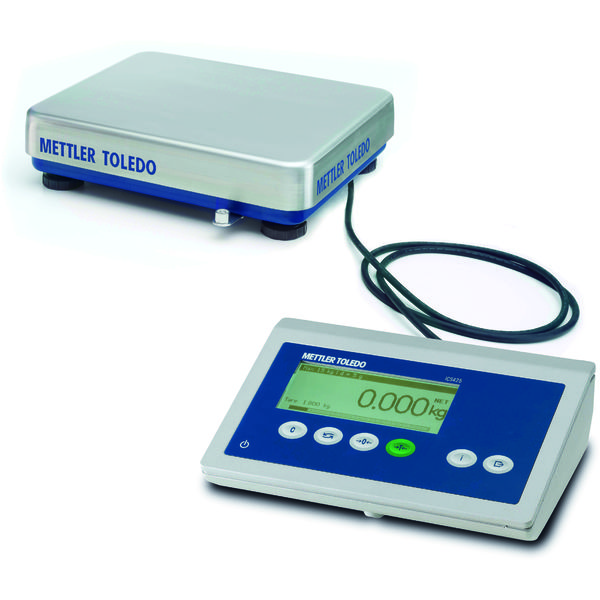

Bench Scale ICS425s-CC60/t/M
Material No.: 22023213
Highlights
Strain Gauge Technology
ICS425, the basic weighing level solution is optimized for quick and easy weighing applications.
Durable and Rugged
Tough enough for use in industrial environments with aluminum die cast housing, overload protection and robust foil keypad.
Withstands Harsh, Dry and Dust-Contaminated Environments
The IP65-approved PBD655 Platform digital platform series is built for challenging environments.
Specifications
Specifications - Bench Scale ICS425s-CC60/t/M
| Maximum Capacity | 60 kg |
| Readability (Certified) | 10 g |
| Material | Platform: Carbon Steel Terminal: Aluminium diecast |
| Repeatability (sd) | 0.6 g |
| Protection Rating | IP65 |
| Scale Interface | SICSpro |
| Platform Size (LxHxW) | 23.6 in x 4.7 in x 31.5 in (600 mm x 120 mm x 800 mm) |
| Display | Graphic LCD with backlight |
| Interfaces | RS232 |
| Housing | Platform: Carbon Steel Terminal: Aluminium diecast |
| Repeatability, typical | 0.6 g |
| Application Software | Dynamic weighing Simple weighing |
| Hazardous Approval | No |
| Applications | Dynamic weighing Simple Weighing |
| Data Interface | Ethernet Serial USB |
| Hazardous Area | Non-hazardous area |
| Legal for Trade | OIML |
| Environment | Dusty & Light Wet (IP65) |
| Interfaces (Optional) | Discrete I/O Ethernet RS422 RS485 USB |
| Voltage | AC Version Battery Version |
| Hygienic Design | No |
| Data Management | Convenient Printing: Easy creation of print & label templates Custom Print Formats: Odette, AIAG, Galia etc. |
| Platform Type | Bench Scale |
