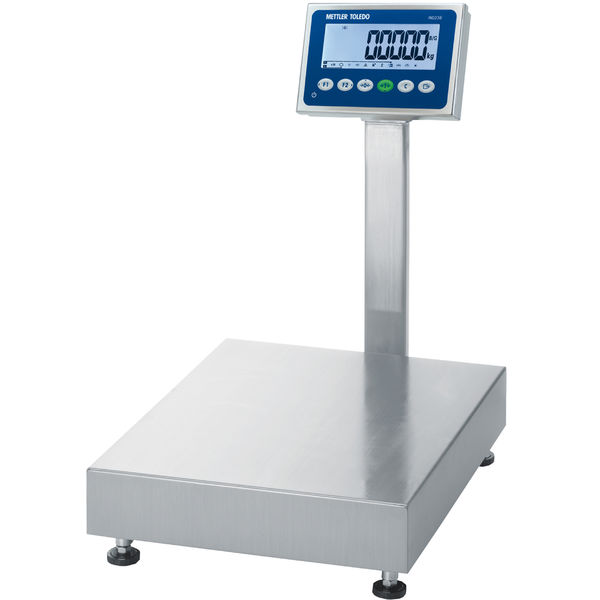

Bench Scale BBA236-4A15N/M
Material No.: 30080333
Highlights
Simple & Intuitive
The IP65-rated scale is easy to operate. The straightforward setup of different functions requires minimal operator training.
Easy to Clean
The open and sturdy stainless-steel platform design, built according to hygienic standards, allows fast, thorough and easy cleaning.
Execution
The scale is AC powered and unapproved by delivery. The stand is not included with scale and must be ordered separately.
Specifications
Specifications - Bench Scale BBA236-4A15N/M
| Maximum Capacity | 15 kg |
| Readability (Certified) | 5 g |
| Material | Stainless Steel |
| Repeatability (sd) | 0.5 g |
| Protection Rating | IP65 Platform IP67 terminal |
| Scale Interface | Analog |
| Platform Size | 11.8 in (240 mm x 86 mm x 300 mm) |
| Display | 7 segment LCD with backlight |
| Interfaces | RS232 |
| Housing | Stainless Steel |
| Repeatability, typical | 0.5 g |
| Weighing Pan Dimensions (LxHxW) | 240 mm x 56 mm x 300 mm |
| Hazardous Approval | No |
| Data Interface | Serial |
| Hazardous Area | Non-hazardous area |
| Legal for Trade | OIML |
| Environment | Dusty & Light Wet (IP65) |
| Voltage | AC Version |
| Hygienic Design | No |
| Data Management | Printing: Application specific print templates |
| Cable | 1.8 m |
| Platform Type | Bench Scale |
