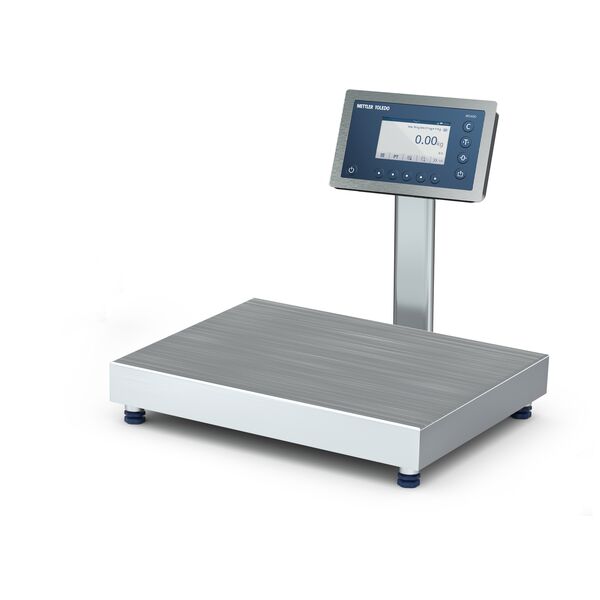

BBD659-400BC300
BBD659-400 is the exceptional hygienic solution for your industrial applications.
Material No.: 31001094014
Highlights
Effortless Customization and Setup
Expedite scale assembly, adjustment and approval with pre-configured pairings tailored to your needs.
Achieve Exceptional Hygienic Standards
Easily achieve higher hygienic standards and boost cleaning speed by up to 50% with no additional effort, even in harsh or humid environments.
Optimize Accuracy for Daily Operation
Streamline setup and maintenance time while optimizing weighing accuracy in everyday operations.
Specifications
Specifications - BBD659-400BC300
| Maximum Capacity | 500 lb (300 kg) |
| Readability | 0.01 lb (5 g) |
| Material | Stainless Steel V2A (AISI 304) |
| Protection Rating | IP68 IP69k |
| Scale Interface | SICSpro |
| Platform Size (LxHxW) | 25.59 in x 5.28 in x 19.69 in (650 mm x 134 mm x 500 mm) |
| Display | 5" High-resolution capacitive touch graphic display |
| Interfaces | Discrete I/O Ethernet TCP/IP Modbus RTU Modbus TCP RS232 RS485 USB Device USB Host WLAN |
| Repeatability, typical | 2.2 g |
| Repeatability, (typical) | 0.005 lb |
| Repeatability (sd) | 0.005 lb (2.2 g) |
| Repeatability | 0.01 lb |
| Applications | Animal Weighing Classification Counting Filling Over Under Checkweighing Simple Weighing Totalizing |
| Hazardous Area | Non-hazardous area |
| Legal for Trade | NTEP OIML |
| Environment | Wet & Harsh Wet (≥IP66) |
| Hygienic Design | Yes |
| Cable | 8.2 ft (2.5 m) |
| Platform Type | Bench Platforms |
