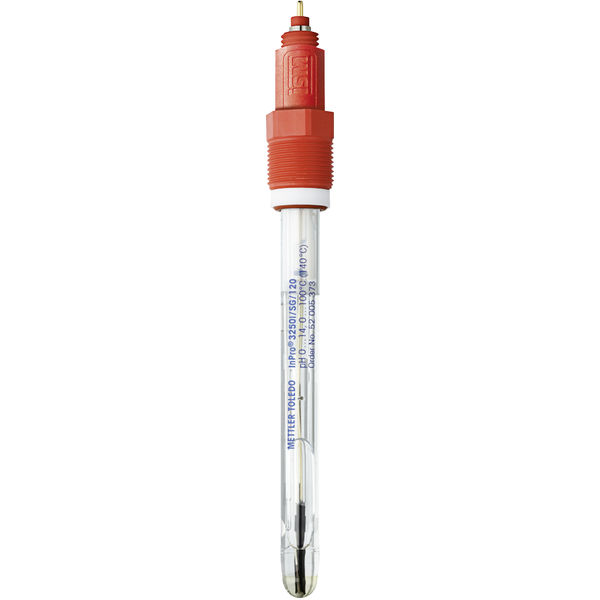

pH Sensor InPro3253i/SG/120

High Performance, High Accuracy pH & ORP.The InPro 3253i SG/120 is a digital, pre-pressurized, low maintenance ISM pH & ORP sensor combined with a temperature sensor for in-line measurement in demanding applications. The 120 mm version is optimal for short installation lengths.

Optimized for Steam Sterilization

The steam-sterilizable pH glass membrane of the InPro 3253i SG/120 makes it optimal for processes where sterilization or autoclaving are required.

Low Maintenance and Easy-to-Use

This digital pH sensor has Intelligent Sensor Management (ISM) technology, offering predictive diagnostics to reduce maintenance and calibration.

Sterilizable and Autoclavable

This sensor provides fast and precise pH and ORP measurement, even after repeated autoclaving and sterilization cycles.

pH Sensor InPro 3253i SG/120
Specifications - pH Sensor InPro3253i/SG/120
pH Range
0 – 12
Connection
K8S / ISM
ISM
Yes
Measured Pressure Resistance
0 – 58 psig (0 – 4 barg)
Measuring Temp. Range
32 °F – 212 °F (0 °C – 100 °C)
Mechanical Temp. Range
32 °F – 284 °F (0 °C – 140 °C)
Material Number(s)
52005377

Reliable, Accurate and Robust

The InPro 3253i SG/120 is designed to withstand the rigors of your production. Its pre-pressurized, maintenance-free reference system ensures high reproducibility and reliable measurement performance under diverse operating conditions.

Advanced Sensor Diagnostics with ISM

This pH sensor features a digital signal and intelligent diagnostics to help manage your maintenance. The sensor provides a clear display of its remaining lifetime, time remaining until calibration, and counts of the SIP and CIP cycles it has undergone.

Easy Validation

The InPro 3253i SG/120 is suited for chemical and pharmaceutical production. Its certification covers hazardous zone use, biocompatibility of the electrolyte, and all relevant hygiene and safety regulations.

Versatile to Meet Your Application Needs

This sensor can measure both pH and ORP (Redox), and has a built in digital temperature sensor. It is pressure resistant up to 4 barg (58 psig), has a watertight connector and can withstand repeated sterilization and autoclave cycles.

Documentation

Datasheets

Data Sheet: pH InPro3253i
The InPro® 3253 i is a digital Intelligent Sensor Management (ISM®) pH sensor, developed to master the challenges of biopharmaceutical processes such...

Applications

Application Note: Improve Your Processes with ISM
In many ways, analytic measurements are at the heart of your process efficiency. Therefore, the lower your downtimes and maintenance requirement, and...
Application Note: Improve Your Pulp & Paper Process Further with ISM Technology
Many years of experience in the field of industrial measurement systems form the basis of METTLER TOLEDO’s competence. Now with its ground-breaking IS...
Easy ISM Sensor Management in Breweries
Application Note - iSense ISM Asset Suite the professional software tool to implement innovative and efficient maintenance concepts with pre-calibrate...

Related Products and Solutions

M400 4-wire Transmitter Multi-Parameter
The METTLER TOLEDO M400 4-wire transmitter covers pH/ORP, oxygen, CO2, and conductivity measurement.
Modular Transmitter M700
This modular transmitter offers flexible use of plug-in modules which enable combined measurements from digital and analog sensors, with a choice of b...

Accessories

Sensor Calibration & Maintenance Tools

PC based software designed to guide you through sensor maintenance, calibration and record keeping for ISM Sensors.

Material No.: 30130614

iSense version for the pharmaceutical industry that allows for electronic records and signatures, making it FDA 21 CFR Part 11 and GMP Volume 4 Annex 11 ready.

Material No.: 30283620

This is a USB iSense adaptor for connecting ISM 1-wire sensors to iSense or iSense Mobile for pH, DO and CO₂ measurement and sensor calibration.

Material No.: 52300383

This is a Bluetooth iSense adaptor for connecting ISM 1-wire sensors to iSense or iSense Mobile for pH, DO and CO2 measurement and sensor calibration.

Material No.: 30126791

A universal device for connecting both 1-wire and RS485 ISM sensors to a computer running iSense software.

Material No.: 30130631

Sensor Simulation & Validation

A tool that allows for the simulation of values of pH ISM sensors for verification of the loop and transmitter settings in your measuring system.

Material No.: 52300410

Consumables
