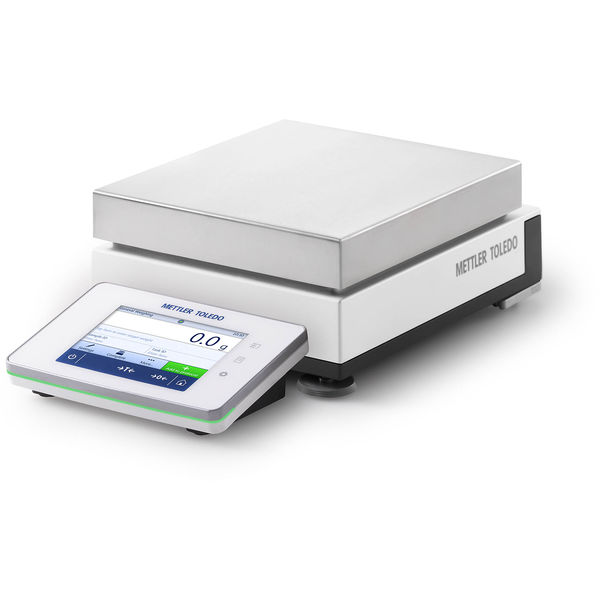

Precision Balance XSR8001S - 8.1 kg capacity

Balance XSR8001S

Smart Features Simplify Daily Tasks.Accurate, reliable results and smart design features. 8.1 kg capacity; 0.1 g readability; integrated methods; results notepad; 4 x USB; 1 x LAN; easy cleaning; LabX compatible

High-Performance Weighing

The high resolution weighing cell delivers fast and accurate results. Together with the StatusLight™, you get reliable results, every time.

Efficient Touchscreen Operation

The touchscreen interface, easy-access menus, results notepad, and saved weighing methods make balance operation instinctive and efficient.

Maximum Productivity

Reliable performance, ergonomic weighing processes, and easy data transfer ensure you get the accurate results you want, quickly and efficiently.

Material No.: 30317515

Available for purchase

Call for Quote
Specifications - Balance XSR8001S
Maximum Capacity
8.1 kg
Readability
0.1 g
Repeatability, typical
40 mg
Settling Time
1 s
Interfaces
USB-B (to device)
RS232 (integrated/optional)
USB-A (to device)
Bluetooth (optional)
Ethernet (LAN)
Display
4.5" color TFT touchscreen
User management
Password protection
Weighing Pan Size ( DxW) or Diameter
190.00 mm x 223.00 mm
Minimum Weight (USP, 0.1%, typical)
82 g
Linearity ±
100 mg
Repeatability
80 mg
Weighing Pan Dimensions (WxD)
190 mm x 223 mm
Dimensions (HxWxD)
99 mm x 194 mm x 391 mm
Terminal size
4.5 inch
Compliance Options
Data Integrity
Log history (21 CFR Part 11 Compliant)
Password protection
Log history (Basic Metadata)
Balance Line
XSR
Balance Type
Precision Balance
Capacity
8,100 g
Balance Size (Depth)
391 mm
Balance Size (Width)
94 mm
Preferred model
Performance
Documentation Options
Printing
Basic Electronic Documentation
Automatic Documentation (21 CFR Part 11 Compliant)
Balance Size (Height)
99 mm
Price
$$$
Linearity
100 mg
Family
Excellence
21 CFR Part 11 Compliant Weighing
Yes
Automation Options
Automated Workflows
Material Number(s)
30317515

Secure Data Handling with LabX

LabX® software automatically captures results, performs all calculations, and saves all data in a secure database, providing a high level of process security and full traceability. Customized reports can be generated at any time.

Consistent Workflows

Save balance filter settings, process settings, and tolerances on the balance as individual methods. Easily accessed, methods offer a quick and convenient way to start tasks; every user follows the same procedures and results are always within tolerance.

At-a-Glance StatusLight™

StatusLight™ uses color to provide instant information on the balance status. Green means it's safe to weigh and results will be valid, yellow is a warning, perhaps that a routine test is due, and red means an issue must be resolved before weighing.

Ergonomic Operation

Placing the display at eye-level on the adjustable ErgoStand™ saves space and eliminates excessive bending of the neck. Optional remote switches simplify workflows, reduce process steps, and leave your hands free to handle samples and equipment.

Safe and Easy Cleaning

The supplied covers protect the terminal and housing and are easily replaced when soiled. The balance body resists harsh chemicals, whilst smooth surfaces and rounded edges make it easy to clean.

Benefit From Our Weighing Know-How

Our free GWP® Recommendation ensures you have the right balance for your weighing process. With years of weighing expertise, we can support you with balance selection, installation, cleaning, routine testing, calibration and maintenance.

Comprehensive Service Offering

Our services include installation and qualification, calibration, maintenance, and routine testing to ensure your balance is fit for purpose and meets industry standards and regulatory requirements. Customize your service package to meet your precise needs.
