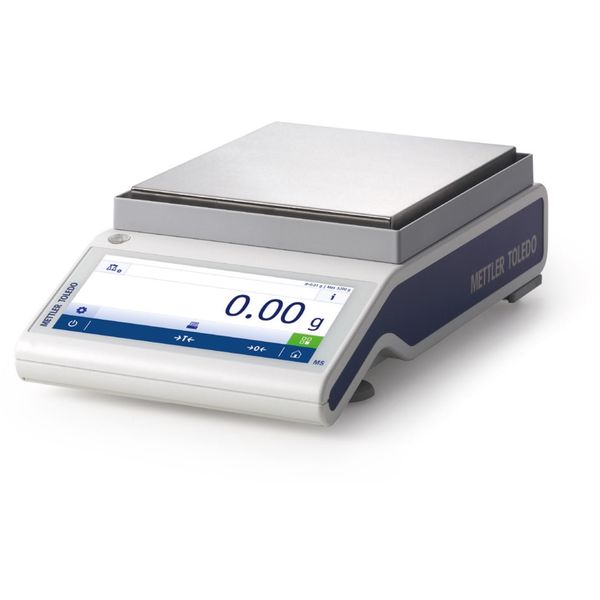

Precision Balance MS4002TSDR/A00 - Discontinued Product
Discontinued since: Feb, 2024
Smart Features Simplify Daily Tasks.Intuitive operation and useful features; 4200/820 g capacity; 100/10 mg readability; USB; RS232; LAN; user management; FACT; configurable sample/task ID; LevelControl; 11 applications; EasyDirect compatible; Bluetooth/wireless options.
Consistently Reliable Results
Thanks to the renowned MonoBloc load cell, FACT automatic adjustment, weighing environment filters, and the MinWeigh function, accuracy is assured.
Extra Large Graphical Color Touchscreen
The touchscreen interface, easy-access menus, large digits, and results graphs simplify daily tasks. Operable with cotton, silicon, and rubber gloves.
Robust, Full Aluminum Housing
The full metal housing protects the weighing cell from impacts and environmental influences, and is resistant to harsh chemicals, including acetone.
Material No.: 30133548
Features
User Management
Define roles and rights for each user to provide easy access to applications, minimize errors, and ensure traceability of activities.
Versatile Connectivity for Data Transfer
Connect a printer, barcode reader, or PC via the RS232, USB and LAN interfaces. With EasyDirect PC software, you can collect data from up to 10 balances automatically and save them in an SQL database. Our Bluetooth and WLAN options enable wireless connection.
Configurable Documentation
Configure how you want to save, print and export your results and associated weighing data. PDF reports and printouts are perfect for archiving. For further processing and analysis, save your data in a CSV or XML file on a USB memory stick.
11 Built-In Weighing Applications
The 11 integrated applications guide you step by step through each process and provide results graphs for fast data interpretation. The simple and efficient processes include differential weighing, density determination, formulation and more.
Easy to Clean
The stainless steel weighing pan and robust metal housing protect against harsh chemicals, whilst the smooth surfaces and rounded edges make cleaning easy.
Benefit From Our Weighing Know-How
Our free GWP® Recommendation ensures you have the right balance for your weighing process. With years of weighing expertise, we can support you with balance selection, installation, cleaning, routine testing, calibration and maintenance.
Comprehensive Service Offering
Our services include installation and qualification, calibration, maintenance, and routine testing to ensure your balance is fit for purpose and meets industry standards and regulatory requirements. Customize your service package to meet your precise needs.
Specifications
Specifications - Precision Balance MS4002TSDR/A00
| Maximum Capacity | 820 g/4.2 kg |
| Readability | 0.01 g 0.1 g |
| Repeatability, typical | 0.007 g 0.05 g |
| Minimum Weight (U=1%, k=2), typical | 1.4 g 14 g |
| Settling Time | 1.5 s |
| Adjustment | Internal (automatic/FACT) |
| Interfaces | Bluetooth (optional) Ethernet (LAN) RS232 (integrated/optional) USB-A (to device) USB-B (to device) |
| User Management | Password protection User Rights |
| Display | 7" colour TFT touchscreen |
| Minimum Weight (USP, 0.1%, typical) | 14 g 140 g |
| Legal for Trade | Yes |
| Weighing Pan Size ( DxW) or Diameter | 200.00 mm x 170.00 mm |
| Weighing Pan Dimensions (WxD) | 200 mm x 170 mm |
| Temperature accuracy (±) | 3 ppm/°C |
| Linearity ± | 0.08 g |
| Dimensions (HxWxD) | 99 mm x 194 mm x 347 mm |
| Compliance Options | Log history (Basic Metadata) Password protection |
| Approved Balance | Yes |
| Balance Line | MS |
| Balance Type | Precision Balance |
| Linearity, typical | 0.2 g |
| Capacity | 4.2 kg |
| Balance Size (Depth) | 347 mm |
| Features | Leveling guidance Password protection User management |
| Balance Size (Width) | 94 mm |
| Documentation Options | Basic Electronic Documentation Printing |
| Balance Size (Height) | 99 mm |
| Applications | Back-weighing Check weighing Counting Density Differential weighing Dynamic weighing Factor weighing Formulation Percent weighing Totaling Weighing |
| Data Management Support (Numbers represent amount of "Stars") | 4 |
| Housing | Die-cast aluminum |
| Price | $$ |
| Family | Advanced |
| Level | Advanced $$ |
| Power | AC Power supply |
| Readability (Certified) | 0.1 g 1 g |
| Hygienic Design | Yes |
Documentation
Accessories
Coated, steel cord with a detachable lock and T-bar mechanism at one end and a loop at the other; includes two keys
Material No.: 11600361
LCD backlit display powered by the balance; RS232 interface
Material No.: 12122381
A set of paired Bluetooth RS232 serial adapters for wireless connection
Material No.: 30086495
Single Bluetooth RS232 serial adapter for wireless connection
Material No.: 30086494
RS232 9-pin (male to female) cable for connecting a balance to a printer, PC, or titrator
Material No.: 11101051
RS232 - USB converter cable to connect a balance (RS232) to a USB port
Material No.: 64088427
CarePac OIML 20g/500g F2 Cal
CarePac® Small 500g F2 / 20g F2 inlcuding accessories for handling and cleaning and a calibration certificate
Material No.: 30550649
CPM, 500G, 20G, ASTM,1,1,C
CarePac® medium 500g /20g ASTM 1 class, including accessories for handling and cleaning and a calibration certificate
Material No.: 11123107
Draft shield for MS precision balances, working height 213 mm
Material No.: 12121014
P-52RUE dot matrix printer supports printing on paper and continuous label and can be connected via RS232, USB and Ethernet interfaces.
Material No.: 30237290
P-56RUE Thermal printer supports printing on thermal paper and continuous thermal labels, and it can be connected via RS232, USB and ethernet interfaces.
Material No.: 30094673
P-58RUE Thermal Printer offers statistics, formulation, totaling applications and label printing with barcode. It can be connected via RS232, USB and ethernet interfaces.
Material No.: 30094674
Dot matrix printer, RS232 interface, print speed 2.3 lines per second, built-in real-time clock, zero/tare key
Material No.: 11124303
Dot matrix printer, USB interface, print speed 2.3 lines per second, auto settings detection
Material No.: 11124301
Collect weighing data from up to 10 Advanced and Standard level balances via Ethernet or RS232 interface on one PC. Easily review results, generate reports, and export data in various formats.
Material No.: 30540473
Collect weighing data from up to 3 Advanced and Standard level balances via Ethernet or RS232 interface on one PC. Easily review results, generate reports, and export data in various formats.
Material No.: 30539323
