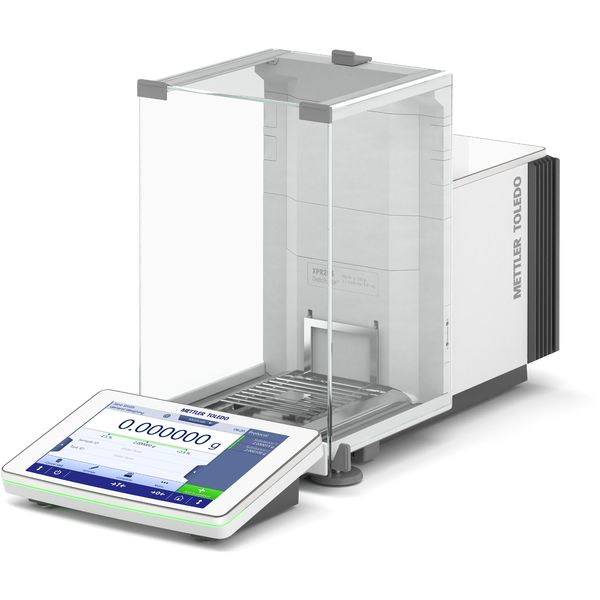

Comparator XPR226CDR/A

Name: Comparator XPR226CDR/A
Brand: Mettler Toledo

Reliability and Accuracy.Manual mass comparator, 220 g / 121 g capacity, 10 µg / 5 µg readability, XPR terminal, ProFACT built-in adjustment, mass calibration software, MC Link included, motorized draft shield

Accurate Mass Determination

METTLER TOLEDO manual mass comparators guarantee top measurement performance and full traceability of weighing results.

Minimized Weighing Errors

Error-free operation through user-guidance on the color touchscreen and automated draft shield doors support a smooth and hands-free process.

Secure Data Transfer

The integrated USB and Ethernet interfaces make it easy and reliable to transfer data to peripheral devices or a network.

Material No.: 30594510

Available for purchase

▲Analytical Balances

Call for Quote

Overview
Documentation
Accessories
More Information
More Information
Consumables
Software

Specifications - Comparator XPR226CDR/A

Maximum Capacity	220 g/121 g
Readability	0.01 mg 0.005 mg
Settling Time	5 s
Minimum Weight (USP, 0.1%, typical)	8 mg
Adjustment	Internal (automatic/FACT)
Interfaces	USB-B (to device) RS232 (integrated/optional) USB-A (to device) Bluetooth (optional) Ethernet (LAN)
User management	Password protection User Rights Unlimited Amount of Users
Legal for Trade	Yes
Repeatability ABA at Nominal Load	20 µg (200 g)
Repeatability ABA at Low Load	5 µg (10 g)
Repeatability nominal load	25 µg
Repeatability (Low Load) (5%)	4 µg
OIML Class	M1 M2 M3 F1 F2 E1 E2
Software	MC Link 2 Mass Calibration Software included
Dimensions (LxHxD)	195 mm x 292 mm x 485 mm
Weight	9.4 kg
Compliance Options	Data Integrity Log history (21 CFR Part 11 Compliant) Password protection Alibi Memory Log history (Basic Metadata)
Approved Balance	Yes
Weighing Pan Dimensions (WxD)	78 mm x 73 mm
Balance Line	XPR
Repeatability, typical	4 µg
Balance Type	Analytical Balance
Features	Automatic static detection Automatic doors Password protection Leveling guidance Supports 21 CFR Part 11 (LabX compatible) User management
Linearity ±	0.1 mg
Documentation Options	Printing Basic Electronic Documentation Automatic Documentation (21 CFR Part 11 Compliant)
Automatic Static Detection	Yes
Readability (Certified)	1 mg
Price	$$$
Linearity	0.1 mg
Family	Excellence
Level	Excellence $$$
21 CFR Part 11 Compliant Weighing	Yes
Automation Options	Automated Powder Dispensing Automated Workflows Automated Liquid Dispensing

One-Click Certificate

The MC Link calibration software (included) automatically stores all your weight calibration data and other relevant metrological data in a secure database. Calibration certificates compliant with regulations are issued with one click.

Latest Technology

The large touchscreen terminal with built-in user guidance minimizes errors. Built-in intelligence, e.g. status light, which intuitively indicates the instrument status.

Highly Ergonomic Operation

The user interface guarantees efficient, intuitive operation. SmartSens sensors allow the draft shield door to be opened/closed with a wave of the hand

Accessories

Anti-static Solutions

Ionizer module XPR Analytical

Built-in Antistatic Kit for XPR analytical balance

Material No.: 30460823

Excellence Refractometer Accessories and Consumables

Lab equip acc data writer P-58RUE

P-58RUE Thermal Printer offers statistics, formulation, totaling applications and label printing with barcode. It can be connected via RS232, USB and ethernet interfaces.

Material No.: 30094674

Lab equip acc data writer P-56RUE

P-56RUE Thermal printer supports printing on thermal paper and continuous thermal labels, and it can be connected via RS232, USB and ethernet interfaces.

Material No.: 30094673
