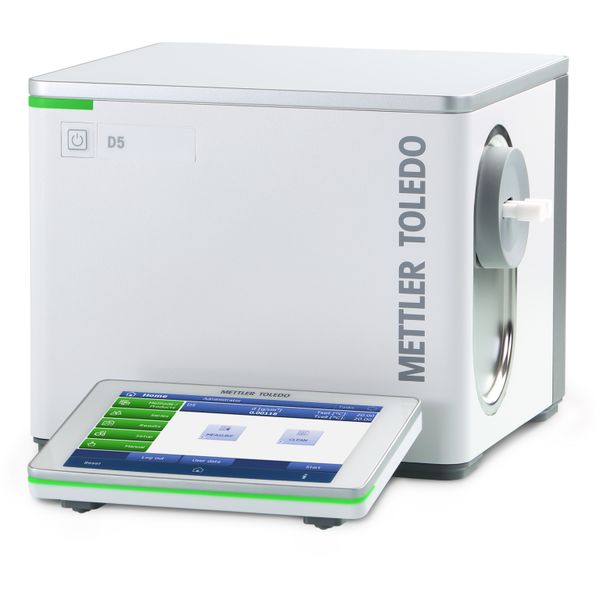

Density meter Excellence D5
Accurate, Intuitive, and Modular. Top instrument for a wide range of applications: The Excellence D5 Density Meter offers fast measurements with automatic temperature control from 0 to 95°C, and accuracy of up to 0.00005 g/cm³.
Simple One Click™ Operation
The One Click™ user interface enables users to start a complete workflow with one click including sampling, measuring, rinsing, drying, and SOPs.
Smart Error Detection
Measurements can be observed in real time via video, and sampling errors can be avoided with the automatic bubble detection algorithm.
Measurement limits can be set for color-coded pass/fail information for accepted and rejected samples.
|Measurement Range Measurement Range:0 g/cm3 – 3 g/cm3||0 g/cm3 – 3 g/cm3|
|Accuracy ± Accuracy ±:0.00005 g/cm3||0.00005 g/cm3|
|Repeatability Repeatability:0.000005 g/cm3||0.000005 g/cm3|
|Resolution Resolution:0.00001 g/cm3||0.00001 g/cm3|
|Temperature control Temperature control:Yes||Yes|
|Temperature control range Temperature control range:0 °C – 95 °C||0 °C – 95 °C|
|Measurement scales Measurement scales:Density, Specific gravity, Alcohol, Acid/Base, Chemical, Salt, API, Sugar, Others, Up to 30 user-defined concentration tables (can be entered as tables or formulas).||Density, Specific gravity, Alcohol, Acid/Base, Chemical, Salt, API, Sugar, Others, Up to 30 user-defined concentration tables (can be entered as tables or formulas).|
|Integrated drying pump Integrated drying pump:No||No|
|Integrated pressure sensor Integrated pressure sensor:Yes||Yes|
|Video view Video view:Yes||Yes|
|Automatic sample detection Automatic sample detection:Yes||Yes|
|Clean check Clean check:Yes||Yes|
|Automatic bubble detection (BubbleCheck™) Automatic bubble detection (BubbleCheck™):Yes||Yes|
|Automatic viscosity correction Automatic viscosity correction:Yes||Yes|
|Color-coded result identification Color-coded result identification:Yes||Yes|
|On-screen help texts On-screen help texts:Yes||Yes|
|User Management User Management:Yes||Yes|
|Barcode reader connectivity Barcode reader connectivity:Yes||Yes|
|Minimum Sample Volume Minimum Sample Volume:1.5 mL||1.5 mL|
|Languages Languages:English, Chinese, German, Spanish, French, Italian, Portuguese, Russian, Polish||English, Chinese, German, Spanish, French, Italian, Portuguese, Russian, Polish|
|Display / User interface Display / User interface:7" display with color touchscreen||7" display with color touchscreen|
|PC Software (Optional) PC Software (Optional):LabX Express and Server||LabX Express and Server|
|Dimensions (Width x Height x Depth) Dimensions (Width x Height x Depth):267 x 226 x 256 mm||267 x 226 x 256 mm|
|Weight Weight:17.5 kg||17.5 kg|
|Standard Compliance Standard Compliance:www.mt.com/dere-norms||www.mt.com/dere-norms|
|Material Number(s) Material Number(s):30474901||30474901|
Automatic Temperature Control
The integrated Peltier temperature control quickly heats up or cools down the measurement cell, maintaining the sample reliably at the desired temperature.
Instrument settings can be personalized with shortcuts and the selected operator language. The user management system allows different levels of access to be defined, protecting critical data.
A refractive index cell can be combined with the Excellence density meters to provide a space-saving system for applications where both density and refractive index values are required.
The status light of the instrument shows if it is ready for a measurement (green), busy (blinking), or waiting for operator action (orange).
Automated Sampling, Rinsing and Drying
Automating workflows saves time, reduces costs and increases safety. The Excellence density meters are compatible with a portfolio of autosamplers including solutions for single or multiple samples, and samples which are viscous or solid at room temperature.
The Excellence density meters can be upgraded into a dedicated automatic multi-parameter system combining density, refractive index, pH, color, and more to save time, increase data quality and prevent any alteration of samples between individual analyses.
