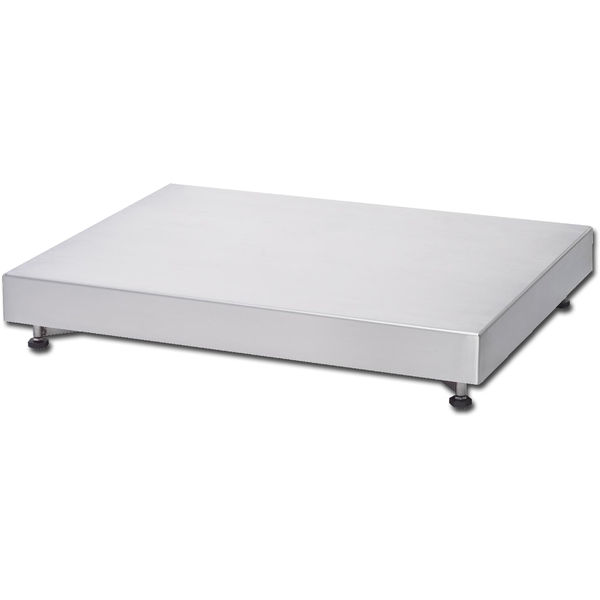

PBA430X-CC60

The Bench Scale for Harsh Environments.

When Cleanliness Counts

The PBA430x is designed according to the latest hygienic design guide lines. This outstanding product line is EHEDG, GMP and NSF certified. In addition, the platforms are suitable for Ex-zone 1/21.

The Surface Shows the Quality

The surface of the platform is e-polished (except 600x800mm) - there is no place for dirt to stick. The smooth load plate is easy to clean.

Hermetically Sealed

The load cell is hermetically sealed. The IP69k protection indicates that it is suitable for high pressure cleaning.

Specifications - PBA430X-CC60
Maximum Capacity
100 lb (30 kg/60 kg)
Readability
0.005 lb (2 g)
Readability (Certified)
0.02 lb (10 g; 20 g)
Repeatability(sd)
0.0031 lb (1.4 g)
Platform Size (LxHxW)
23.6 in x 5.1 in x 31.5 in (600 mm x 130 mm x 800 mm)
Hazardous Approval
ATEX Cat. 2GD; FM Class I,II,III/Div 1
Material
Stainless Steel V2A (AISI 304)
Scale Interface
Analog
Cable
8.2 ft (2.5 m)
Repeatability
2 g
Repeatability, typical
1.4 g
Dimensions (LxW)
240 mm x 300 mm
Repeatability (typical)
0.0031 lb
Protection Rating
IP69k; IP68
Weighing Pan Dimensions
9.5 in
Environment
Wet & Harsh Wet (>/=IP66)
Dimensions/Platform Size
from 19.8" to 31.5"; from 501 to 800 mm
Legal for Trade
NTEP; OIML
Hazardous Area
Zone 1/21; Division 1
Hygienic Design
Yes
Platform Type
Bench Platforms
Material Number(s)
22010283

Documentation

Product Brochures

Accessories

Consumables
