PBA430X-A3 - Overview - METTLER TOLEDO

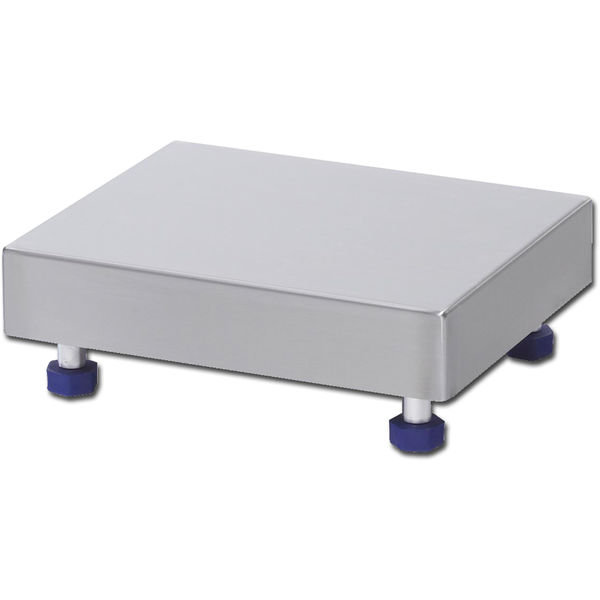

PBA430X-A3

The Bench Scale for Harsh Environments.

When Cleanliness Counts

The PBA430x is designed according to the latest hygienic design guide lines. This outstanding product line is EHEDG, GMP and NSF certified. In addition, the platforms are suitable for Ex-zone 1/21.

The Surface Shows the Quality

The surface of the platform is e-polished (except 600x800mm) - there is no place for dirt to stick. The smooth load plate is easy to clean.

Hermetically Sealed

The load cell is hermetically sealed. The IP69k protection indicates that it is suitable for high pressure cleaning.

Specifications - PBA430X-A3
Maximum Capacity
3 kg
Readability
0.1 g
Readability (Certified)
1 g
Repeatability (sd)
0.06 g
Platform Size (LxHxW)
9.5 in x 3.7 in x 11.8 in (240 mm x 95 mm x 300 mm)
Hazardous Approval
ATEX Cat. 2GD; FM Class I,II,III/Div 1
Material
Stainless Steel V2A (AISI 304)
Scale Interface
Analog
Cable
3.3 ft (1 m)
Repeatability
0.1 g
Repeatability, typical
0.06 g
Dimensions (LxW)
240 mm x 300 mm
Protection Rating
IP69k; IP68
Weighing Pan Dimensions
9.5 in
Environment
Wet & Harsh Wet (>/=IP66)
Dimensions/Platform Size
</=400 mm; from 6.3" to 15.7"
Legal for Trade
OIML
Hazardous Area
Zone 1/21; Division 1
Hygienic Design
Yes
Platform Type
Bench Platforms
Material Number(s)
22010271

Documentation

Product Brochures

Accessories

Consumables
