Compact Scale ICS226-QA15FCL-US - Overview - METTLER TOLEDO

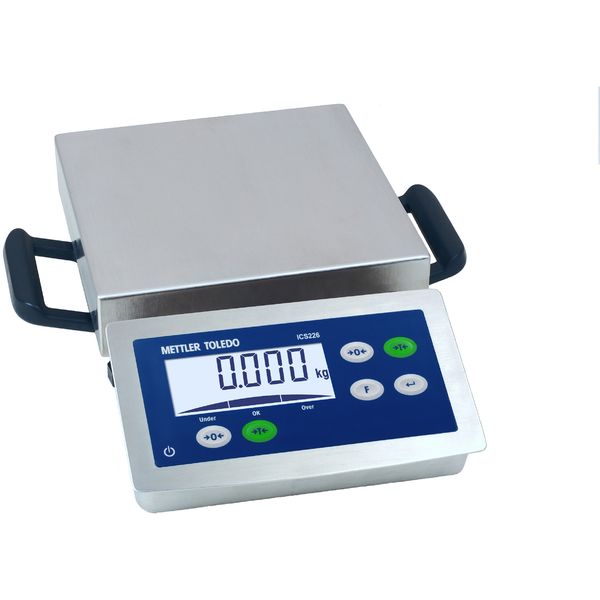

Compact Scale ICS226-QA15FCL-US

The Compact Checkweigher.

Ergonomic and Mobile Design

ICS226 provides double zero/tare keys and an intuitive indicator to increase productivity, along with a built-in rechargeable battery and removable handle for mobile weighing applications.

Highly Durable

Full stainless steel housing and stainless steel load cell provide a long life, even in wet and harsh environments, with IP65/IP57 ingress protection ratings.

Easy to Clean

Hygienic design supports an easy, fast and efficient cleaning procedure.

Specifications - Compact Scale ICS226-QA15FCL-US
Maximum Capacity 30 lb (15 kg)
Readability 0.01 lb (0.005 kg)
Readability (Certified) 0.01 lb (0.005 kg)
Repeatability (sd) 0.0014 lb (0.005 kg)
Platform Size (LxWxH) 9 in x 9 in x 3.07 in (228 mm x 228 mm x 78 mm)
Weighing Pan Dimensions (HxW) 50 mm x 9 in (50 mm x 228 mm)
Material Stainless Steel
Protection Rating IP67 terminal; IP65 Platform
Repeatability 0.01 lb (2 g)
Hazardous Approval No
Display 7 segment LCD with backlit
Housing Stainless Steel
Interfaces RS232
Application Software Dynamic Weighing; Over Under Checkweighing; Simple weighing
Repeatability (typical) 0.0014 lb
Repeatability (typical) 0.005 kg
Weighing Pan Dimensions 9 in (228 mm)
Power Supply 6V Ni-MH rechargable battery 3800 mAh
Power Supply (DC) 6 V – 6 V
Applications Dynamic weighing; Over Under Checkweighing; Simple Weighing
Data Interface Serial
Dimensions/Platform Size </=400 mm; from 6.3" to 15.7"
Environment Dusty & Light Wet (IP65)
Legal for Trade NTEP
Scale Interface Analog
Voltage AC Version; Battery Version
Hygenic Design No
Maximum Capacity 15 kg
Platform Type Compact Scale
Readability (Certified) 5 g
Material Number(s) 30083485
