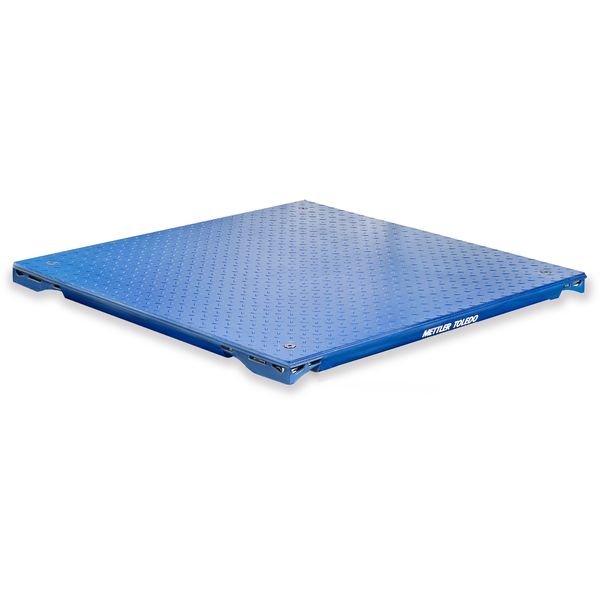

Model PFD774-D1500

True Performance, Every Time!.PowerDeck™ PFD774 is a variable floor scale between 300kg 1.0m x 1.0m and 12 tons 2m x 2,5m. The floor scale is up to 2x10000e accuracy in market.

Real-Time Operator Guidance

Increase productivity by alerting operators for optimal placement of goods on the scale to guarantee repeatability. Easy, error-free operation.

Rugged and Precise

Increase yields in your harsh environment. Select resolutions from 3000e up to 30,000d. Smart system monitors and compensates to ensure accuracy.

Visibility through Diagnostics

Protect your investment with real-time monitoring. Detect and track shock and overloads. Alerts prevent potential failures before they happen.

Specifications - Model PFD774-D1500
Maximum Capacity
1,500 kg
Readability
50 g
Readability (Certified)
500 g
Repeatability
40 g
Platform Size (LxWxH)
1,250 mm x 1,000 mm x 78 mm
Material
Mild Steel
Protection Rating
IP68; IP69k
Cable
3 m
Hazardous Approval
No
Scale Interface
POWERCELL®
Repeatability (typical)
40 g
Repeatability (sd)
40 g
Environment
Wet & Harsh Wet (>/=IP66)
Legal for Trade
OIML
Linearity, typically
80 g
Dimensions/Platform Size
from 1,001 to 1,500 mm; from 41" to 59.9"
Platform Type
Floor scale
Hygenic Design
No
Material Number(s)
39800841

Documentation

Brochures

PowerDeck™ Product Brochure
Floor scales are an integral part of your business, but utilizing technology that is over 50 years old means they often are a big source of headaches...

Datasheets

PowerDeck™ Datasheet
Only PowerDeck™ continuously monitors every component and overall status of the scale. Operators are immediately alerted to any deviations, meaning yo...

Accessories

Consumables

Get Your Quote
Model PFD774-D1500
Hazardous Area
FM Approved
