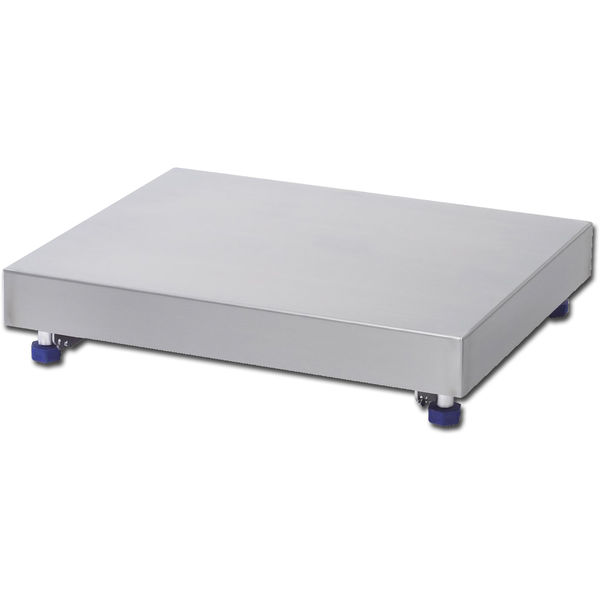

PBA430X-B60

The Bench Scale for Harsh Environments.

When Cleanliness Counts

The PBA430x is designed according to the latest hygienic design guide lines. This outstanding product line is EHEDG, GMP and NSF certified. In addition, the platforms are suitable for Ex-zone 1/21.

The Surface Shows the Quality

The surface of the platform is e-polished (except 600x800mm) - there is no place for dirt to stick. The smooth load plate is easy to clean.

Hermetically Sealed

The load cell is hermetically sealed. The IP69k protection indicates that it is suitable for high pressure cleaning.

Specifications - PBA430X-B60
Maximum Capacity 100 lb (30 kg/60 kg)
Readability 0.005 lb (2 g)
Readability (Certified) 0.02 lb (10 g; 20 g)
Repeatability (sd) 0.6 g
Platform Size (LxW) 15.7 in x 19.7 in (400 mm x 500 mm)
Hazardous Approval ATEX Cat. 2GD; FM Class I,II,III/Div 1
Material Stainless Steel V2A (AISI 304)
Repeatability 0.005 lb (2 g)
Dimensions (LxW) 400 mm x 500 mm
Maximum Capacity 50 kg
Protection Rating IP68; IP69k
Readability (Certified) 10 g
Cable 8.2 ft (2.5 m)
Resolution 20 g; 10 g
Hygenic Design Yes
Platform Type Bench Platforms
Scale Interface Analog
Material Number(s) 22010278
