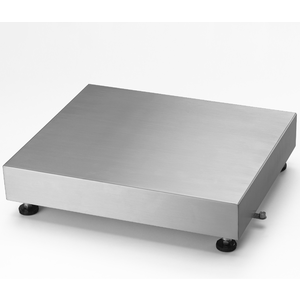

Weighing Platform PBA226-QA6H
For Short Time Wet Environments.
The rugged, electro polished full stainless steel frame ensures a long life time also when used in demanding applications (IP65).
Easy to Clean
The open and sturdy platform design, built according to hygienic standards, allowing fast, thorough and easy cleaning.
To easily reduce on site-contamination, this platform features a hygienic-kit, containing specially designed leveling kits and overload stops.
|Maximum Capacity||10 lb (6 kg)|
|Readability||0.001 lb (0.5 g)|
|Repeatability (sd)||0.00044 lb (0.2 g)|
|Platform Size (LxWxH)||9 in x 9 in x 3.38 in (229 mm x 229 mm x 86 mm)|
|Material||Stainless Steel V2A (AISI 304)|
|Readability (Certified)||0.002 lb (2 g)|
|Repeatability||0.001 lb (0.5 g)|
|Dimensions (HxLxW)||3.38 in x 9 in x 9 in (86 mm x 229 mm x 229 mm)|
|Repeatability (typical)||0.00044 lb|
|Repeatability (typical)||0.2 g|
|Weighing Pan Dimensions (HxLxW)||2.2 in x 9 in x 9 in (56 mm x 229 mm x 229 mm)|
|Cable||5.9 ft (1.8 m)|
|Dimensions/Platform Size||</=400 mm; from 6.3" to 15.7"|
|Environment||Dusty & Light Wet (IP65)|
|Legal for Trade||NTEP; OIML|
|Linearity (typical)||0.002 lb|
|Linearity||0.002 lb (2 g)|
|Linearity, typically||2 g|
|Maximum Capacity||5 kg|
|Platform Type||Bench Platforms|
|Readability (Certified)||1 g|
