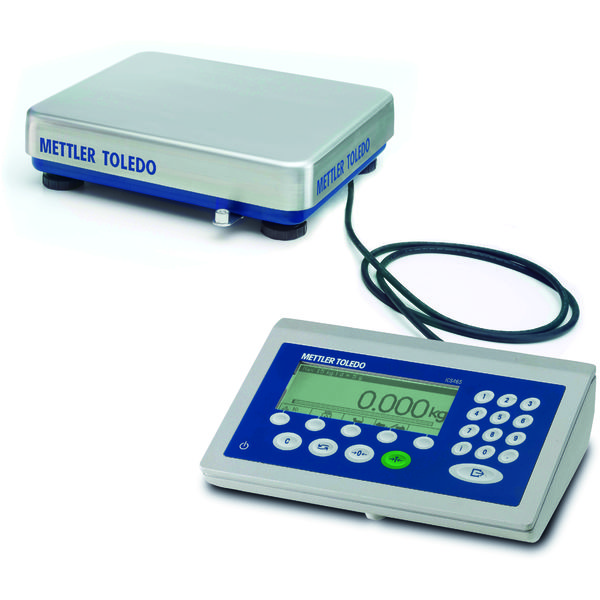

Bench Scale ICS465s-BC60/t/M
Reliable Performance.
Strain Gauge Technology
The ICS465 advanced counting solution is easy to use for counting, totalizing and checkweighing.
Durable and Rugged
Tough enough for use in industrial environments with aluminum die cast housing, overload protection and robust foil keypad.
Withstands Harsh, Dry and Dust-Contaminated Environments
The IP65-approved PBD655 Platform digital platform series is built for challenging environments.
Material No.: 22023251
/content/us/en/home/products/Industrial_Weighing_Solutions/bench-scales/counting-scale/ICS465/ICS465s-count-BC60-t-M.fb.1.c.11.html?abcl=2
Call for Quote Product Family:bench-scale000500030029
Maximum Capacity:60 kgMaximum Capacity:60 kgInterfaces:RS232Interfaces:RS232Interfaces:Serial; USB; Ethernet; WLAN; Discrete I/OInterfaces:SerialInterfaces:USBInterfaces:EthernetInterfaces:WLANInterfaces:Discrete I/OApplication Software:Dynamic Weighing; Counting; Simple weighing; Over Under CheckweighingApplication Software:Dynamic WeighingApplication Software:CountingApplication Software:Simple weighingApplication Software:Over Under CheckweighingEnvironment:Dusty & Light Wet (IP65)Environment:Dusty & Light Wet (IP65)Legal for Trade:OIMLLegal for Trade:OIMLHazardous Area:Non-hazardous areaHazardous Area:Non-hazardous areaApplications:Simple Weighing; Dynamic weighing; Counting; Over Under CheckweighingApplications:Simple WeighingApplications:Dynamic weighingApplications:CountingApplications:Over Under CheckweighingDimensions/Platform Size:from 19.8" to 31.5"; from 501 to 800 mmDimensions/Platform Size:from 19.8" to 31.5"Dimensions/Platform Size:from 501 to 800 mmHygienic Design:NoHygienic Design:No
Specifications - Bench Scale ICS465s-BC60/t/M
| Maximum Capacity | 60 kg |
| Readability (Certified) | 10 g |
| Repeatability (sd) | 0.6 g |
| Platform Size (LxHxW) | 19.7 in x 4.3 in x 25.6 in (500 mm x 110 mm x 650 mm) |
| Material | Platform: Carbon Steel; Terminal: Aluminium diecast |
| Protection Rating | IP65 |
| Display | Graphic LCD with multicolor backlit |
| Interfaces | RS232 |
| Housing | Platform: Carbon Steel; Terminal: Aluminium diecast |
| Repeatability | 1 g |
| Repeatability, typical | 0.6 g |
| Interfaces | Serial; USB; Ethernet; WLAN; Discrete I/O |
| Hazardous Approval | No |
| Application Software | Dynamic Weighing; Counting; Simple weighing; Over Under Checkweighing |
| Data Interface | Serial; USB; Ethernet; WLAN |
| Environment | Dusty & Light Wet (IP65) |
| Legal for Trade | OIML |
| Hazardous Area | Non-hazardous area |
| Applications | Simple Weighing; Dynamic weighing; Counting; Over Under Checkweighing |
| Voltage | Battery Version; AC Version |
| Scale Interface | SICSpro |
| Interfaces (Optional) | USB; Ethernet; RS422; RS485; WLAN; Discrete I/O |
| Hygienic Design | No |
| Platform Type | Bench Scale |
| Material Number(s) | 22023251 |
