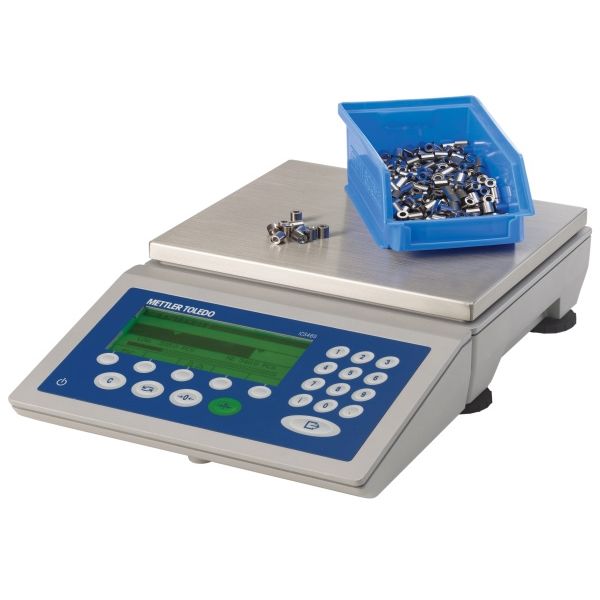

Compact Scale ICS465s-6SM/f
Reliable Performance.
Strain Gauge Technology
The ICS465 advanced counting solution is easy to use for counting, totalizing and checkweighing.
Durable and Rugged
Tough enough for use in industrial environments with aluminum die cast housing, overload protection and robust foil keypad.
Product Family:counting-scale000500030009
Maximum Capacity:12 lb (6 kg)Maximum Capacity:12 lbMaximum Capacity:6 kgReadability:0.001 lb (0.1 g)Readability:0.001 lbReadability:0.1 gReadability (Certified):0.002 lbReadability (Certified):0.002 lbPlatform Size (LxWxH):7.9 in x 9.5 in x 3.7 in (200 mm x 240 mm x 95 mm)Platform Size (LxWxH):7.9 in x 9.5 in x 3.7 in (200 mm x 240 mm x 95 mm)Interfaces:RS232Interfaces:RS232Interfaces:Serial; Ethernet; USB; WLAN; Discrete I/OInterfaces:SerialInterfaces:EthernetInterfaces:USBInterfaces:WLANInterfaces:Discrete I/OApplications:Counting; Dynamic weighing; Over Under Checkweighing; Simple WeighingApplications:CountingApplications:Dynamic weighingApplications:Over Under CheckweighingApplications:Simple WeighingDimensions/Platform Size:</=400 mm; from 6.3" to 15.7"Dimensions/Platform Size:</=400 mmDimensions/Platform Size:from 6.3" to 15.7"Environment:Dry (<IP65)Environment:Dry (<IP65)Hazardous Area:Non-hazardous areaHazardous Area:Non-hazardous areaLegal for Trade:NTEPLegal for Trade:NTEPHygenic Design:NoHygenic Design:No
Specifications - Compact Scale ICS465s-6SM/f
| Maximum Capacity | 12 lb (6 kg) |
| Readability | 0.001 lb (0.1 g) |
| Readability (Certified) | 0.002 lb |
| Repeatability (sd) | 0.000088 lb (0.04 g) |
| Platform Size (LxWxH) | 7.9 in x 9.5 in x 3.7 in (200 mm x 240 mm x 95 mm) |
| Material | Aluminium diecast |
| Protection Rating | IP54 |
| Repeatability | 0.0002 lb (0.1 g) |
| Hazardous Approval | No |
| Display | Graphic LCD with multicolor backlit |
| Housing | Aluminum Diecast |
| Interfaces | RS232 |
| Repeatability (typical) | 0.04 g |
| Repeatability (typical) | 0.000088 lb |
| Application Software | Counting; Dynamic Weighing; Over Under Checkweighing; Simple weighing |
| Applications | Counting; Dynamic weighing; Over Under Checkweighing; Simple Weighing |
| Data Interface | Ethernet; Serial; USB; WLAN |
| Environment | Dry (<IP65) |
| Hazardous Area | Non-hazardous area |
| Legal for Trade | NTEP |
| Interfaces (Optional) | Discrete I/O; Ethernet; RS422; RS485; USB; WLAN |
| Scale Interface | SICSpro |
| Voltage | AC Version; Battery Version |
| Hygenic Design | No |
| Platform Type | Counting Scales |
| Material Number(s) | 22023048 |
