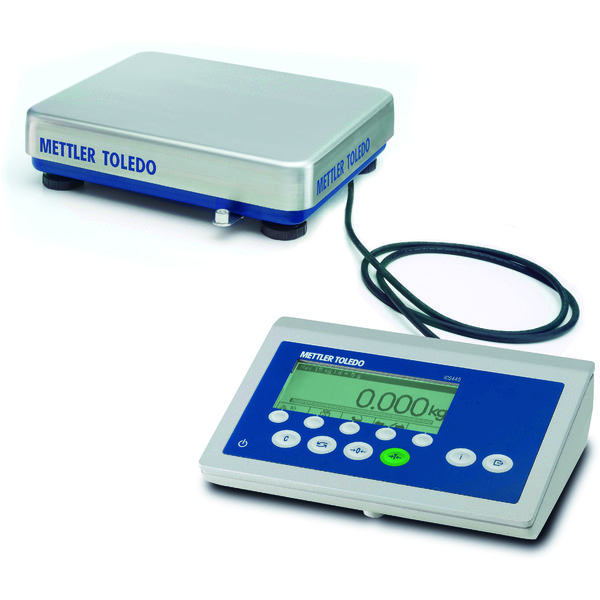

Bench Scale ICS445s-CC600/t/M
Reliable Performance.
Strain Gauge Technology
The ICS445 basic counting solution offers configurable soft keys for fast access to key functions, such as sampling for counting.
Durable and Rugged
Tough enough for use in industrial environments with aluminum die cast housing, overload protection and robust foil keypad.
Withstands Harsh, Dry and Dust-Contaminated Environments
The IP65-approved PBD655 Platform digital platform series is built for challenging environments.
Product Family:counting-scale000500040036
Maximum Capacity:600 kgMaximum Capacity:600 kgReadability (Certified):100 gReadability (Certified):100 gPlatform Size (LxWxH):23.6 in x 31.5 in x 4.7 in (600 mm x 800 mm x 120 mm)Platform Size (LxWxH):23.6 in x 31.5 in x 4.7 in (600 mm x 800 mm x 120 mm)Interfaces:RS232Interfaces:RS232Interfaces:Serial; Ethernet; USB; WLAN; Discrete I/OInterfaces:SerialInterfaces:EthernetInterfaces:USBInterfaces:WLANInterfaces:Discrete I/OApplications:Counting; Dynamic weighing; Simple WeighingApplications:CountingApplications:Dynamic weighingApplications:Simple WeighingDimensions/Platform Size:from 19.8" to 31.5"; from 501 to 800 mmDimensions/Platform Size:from 19.8" to 31.5"Dimensions/Platform Size:from 501 to 800 mmEnvironment:Dusty & Light Wet (IP65)Environment:Dusty & Light Wet (IP65)Hazardous Area:Non-hazardous areaHazardous Area:Non-hazardous areaLegal for Trade:OIMLLegal for Trade:OIMLHygenic Design:NoHygenic Design:No
Specifications - Bench Scale ICS445s-CC600/t/M
| Maximum Capacity | 600 kg |
| Readability (Certified) | 100 g |
| Repeatability (sd) | 6.6 g |
| Platform Size (LxWxH) | 23.6 in x 31.5 in x 4.7 in (600 mm x 800 mm x 120 mm) |
| Material | Platform: Carbon Steel; Terminal: Aluminium diecast |
| Protection Rating | IP65 |
| Display | Graphic LCD with backlit |
| Interfaces | RS232 |
| Housing | Platform: Carbon Steel; Terminal: Aluminium diecast |
| Repeatability | 10 g |
| Repeatability (typical) | 6.6 g |
| Application Software | Counting; Dynamic Weighing; Simple weighing |
| Hazardous Approval | No |
| Applications | Counting; Dynamic weighing; Simple Weighing |
| Data Interface | Ethernet; Serial; USB; WLAN |
| Environment | Dusty & Light Wet (IP65) |
| Hazardous Area | Non-hazardous area |
| Legal for Trade | OIML |
| Interfaces (Optional) | Discrete I/O; Ethernet; RS422; RS485; USB; WLAN |
| Scale Interface | SICSpro |
| Voltage | AC Version; Battery Version |
| Hygenic Design | No |
| Platform Type | Bench Scale |
| Material Number(s) | 22023245 |
