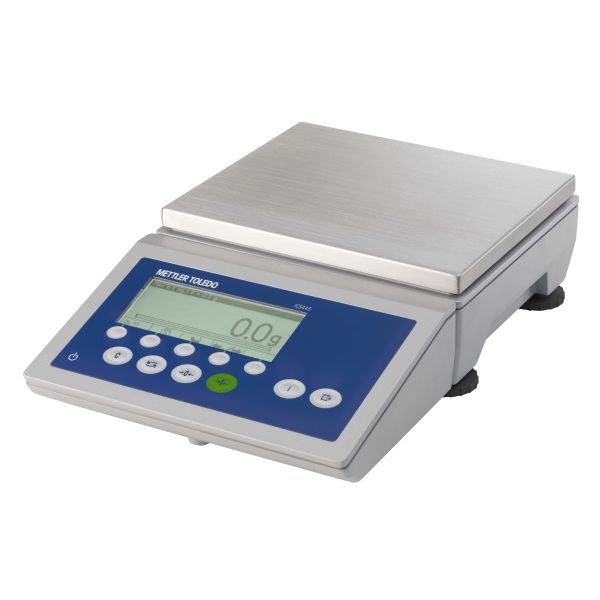

Compact Scale ICS445s-6SM/f/M/65
Reliable Performance.
Strain Gauge Technology
The ICS445 basic counting solution offers configurable soft keys for fast access to key functions, such as sampling for counting.
Durable and Rugged
Tough enough for use in industrial environments with aluminum die cast housing, overload protection and robust foil keypad.
Dust-Proof with Guaranteed Accuracy
This dust-proof system is legal for trade, and its accuracy is guaranteed by a nationally accredited facility prior to shipment.
Product Family:counting-scale000500040021
Maximum Capacity:6 kgMaximum Capacity:6 kgReadability (Certified):1 gReadability (Certified):1 gPlatform Size (LxWxH):7.9 in x 9.5 in x 3.7 in (200 mm x 240 mm x 95 mm)Platform Size (LxWxH):7.9 in x 9.5 in x 3.7 in (200 mm x 240 mm x 95 mm)Interfaces:RS232Interfaces:RS232Interfaces:Serial; Ethernet; USB; WLAN; Discrete I/OInterfaces:SerialInterfaces:EthernetInterfaces:USBInterfaces:WLANInterfaces:Discrete I/OApplications:Counting; Dynamic weighing; Simple WeighingApplications:CountingApplications:Dynamic weighingApplications:Simple WeighingDimensions/Platform Size:</=400 mm; from 6.3" to 15.7"Dimensions/Platform Size:</=400 mmDimensions/Platform Size:from 6.3" to 15.7"Environment:Dusty & Light Wet (IP65)Environment:Dusty & Light Wet (IP65)Hazardous Area:Non-hazardous areaHazardous Area:Non-hazardous areaLegal for Trade:OIMLLegal for Trade:OIMLHygenic Design:NoHygenic Design:No
Specifications - Compact Scale ICS445s-6SM/f/M/65
| Maximum Capacity | 6 kg |
| Readability (Certified) | 1 g |
| Repeatability (sd) | 0.04 g |
| Platform Size (LxWxH) | 7.9 in x 9.5 in x 3.7 in (200 mm x 240 mm x 95 mm) |
| Material | Aluminium diecast |
| Protection Rating | IP65 |
| Repeatability | 0.1 g |
| Hazardous Approval | No |
| Display | Graphic LCD with backlit |
| Housing | Aluminum Diecast |
| Interfaces | RS232 |
| Repeatability (typical) | 0.04 g |
| Application Software | Counting; Dynamic Weighing; Simple weighing |
| Applications | Counting; Dynamic weighing; Simple Weighing |
| Data Interface | Ethernet; Serial; USB; WLAN |
| Environment | Dusty & Light Wet (IP65) |
| Hazardous Area | Non-hazardous area |
| Legal for Trade | OIML |
| Interfaces (Optional) | Discrete I/O; Ethernet; RS422; RS485; USB; WLAN |
| Scale Interface | SICSpro |
| Voltage | AC Version; Battery Version |
| Hygenic Design | No |
| Platform Type | Counting Scales |
| Material Number(s) | 22023110 |
